Repair Procedures: Replacement

Disconnect the negative (-) battery terminal.
Remove the crash pad side cover (A).

Fig 1: Identifying Crash Pad Side Cover
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting screws, remove the lower panel (A).

Fig 2: Identifying Lower Panel
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connector (A).

Fig 3: Identifying In Car Sensor Connectors (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 4: Identifying In Car Sensor Connectors (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting bolts, then remove the reinforcing panel (A).

Fig 5: Identifying Reinforcing Panel
Courtesy of HYUNDAI MOTOR AMERICA

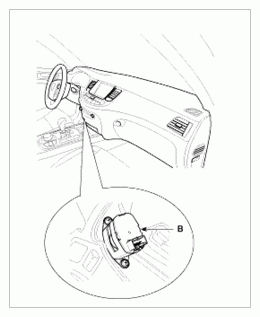

Disconnect the connector of in-car sensor. Loosen the mounting 2 screws and then remove the in-car sensor (B).

Fig 6: Identifying In-Car Sensor
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse order of removal.
