Home >> Hyundai >> 2013 >> Genesis 3.8 >> Repair and Diagnosis >> Heating, Ventilation & A/C (HVAC) >> HVAC Control Systems >> Air Conditioning System >> Ambient Sensor >> Repair Procedures >> Replacement

Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper.

    (Refer to "FRONT BUMPER ")

  3. Remove the ambient temperature sensor (A).

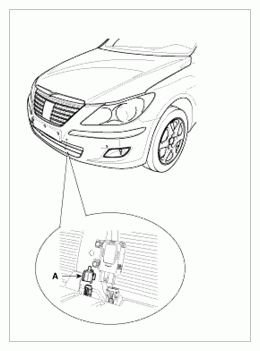

    Fig 1: Identifying Ambient Temperature Sensor
    G08838948Courtesy of HYUNDAI MOTOR AMERICA
  4. Installation is the reverse order of removal.
