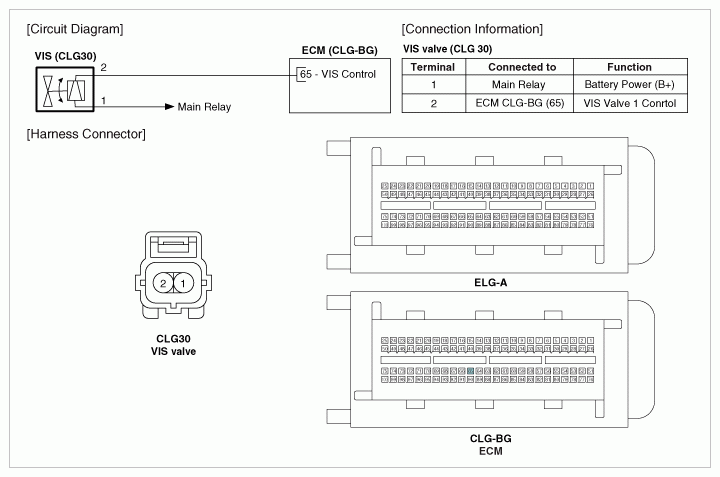

Home >> Hyundai >> 2013 >> Genesis 3.8 >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 3.8L >> Variable Intake Solenoid (VIS) Valve >> Schematic Diagrams >> Circuit Diagram
