Monitor Scantool Data

  1. Check status
    1. IGN "ON" & Engine "OFF"
    2. Monitor the "ECM, Key and Smarter Status" Parameter on the Scantool.

      Specification  : 'LEARNT'

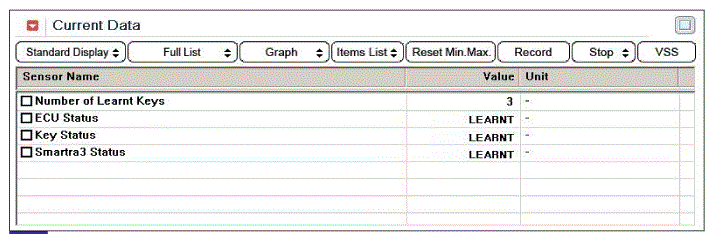

      Fig 1: Display - ECM, Key And Smarter Status Parameter
      G08840415Courtesy of HYUNDAI MOTOR AMERICA
    3. Has the KEY status learnt?

      YES

      • Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, damage on the ECM or SMARTRA. And This DTC has not erased in previous repair. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

      NO
