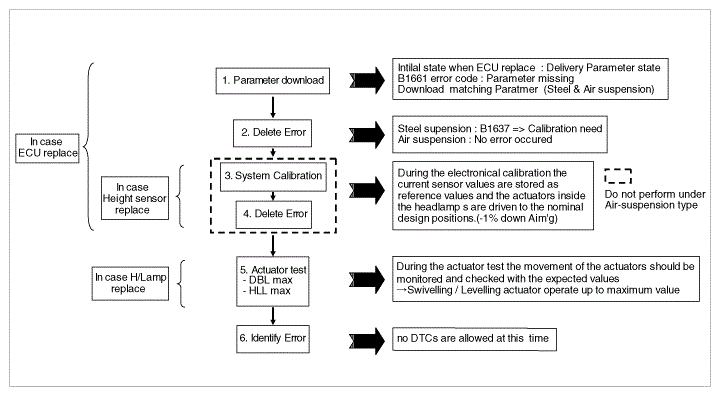

AFLS Setting Procedure
When it replace AFLS ECU, H/Lamp Unit, Height sensor, it operates in setting procedure by using Diagnostic equipment following belows.
Parameter is composed of three state (Air-suspension, Steel-suspension, Delivery state)
When AFLS setting procedure operate, necessarily confirm suspension type and then download parameter.
DTC: Diagnostic Trouble Code
DBL: Dynamic bending Light
HLL: Head Lamp Leveling
