Signal Waveform & Data

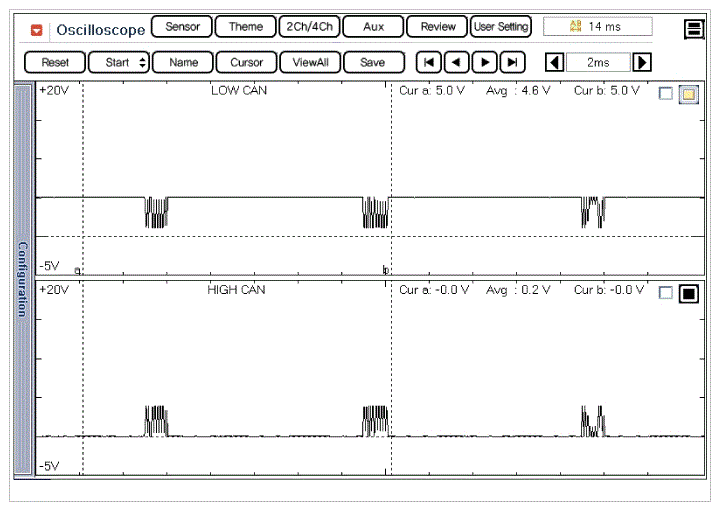

Fig 1: Display - Body CAN High & Low Signal Waveform

Courtesy of HYUNDAI MOTOR AMERICA

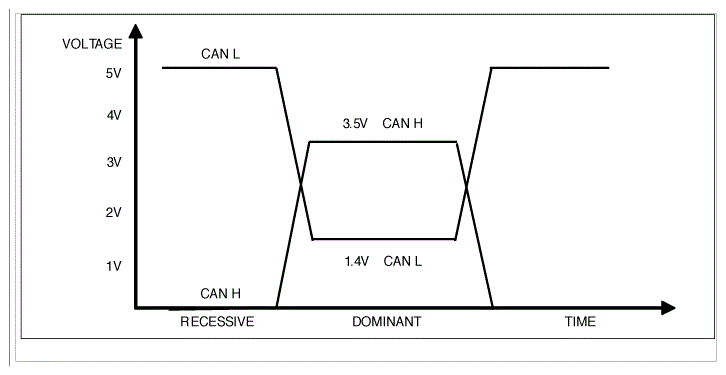

Fig 2: Display - Body CAN Voltage Waveform

Courtesy of HYUNDAI MOTOR AMERICA

Normal waveform of Body CAN high & low, refer to Fig 1.

Normal voltage level of Body CAN, refer to Fig 2.
