Repair Procedures: Inspection

  1. Remove the seat control switch.

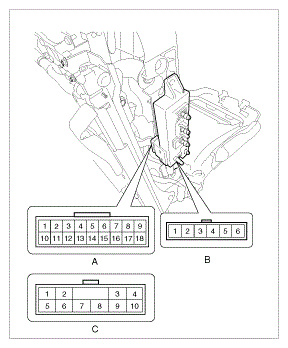

    Fig 1: Identifying Seat Control Switch Connectors
    G08838511Courtesy of HYUNDAI MOTOR AMERICA
  2. With the power seat control switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat control switch.

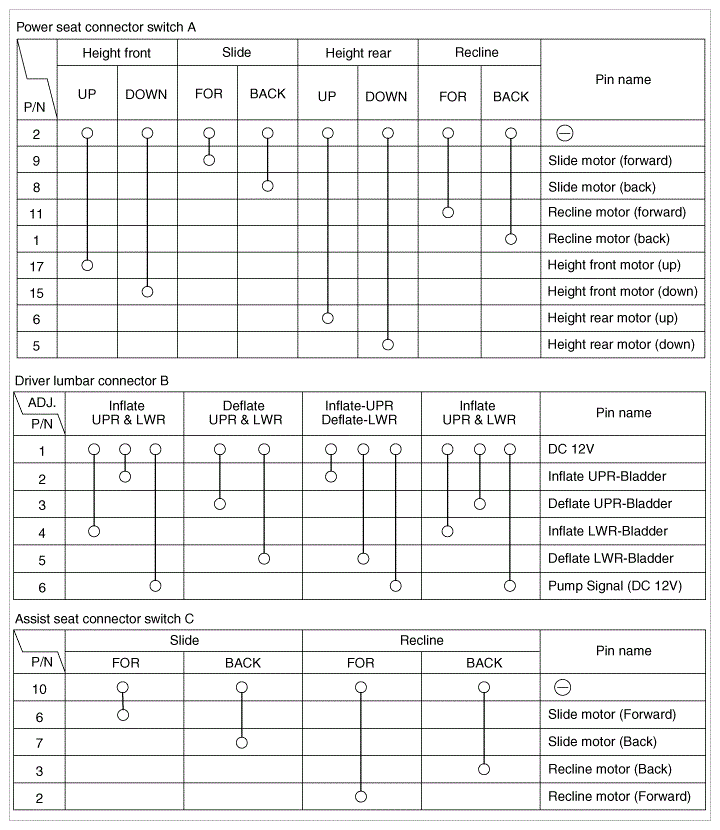

    Fig 2: Seat Control Switch Continuity Reference Chart
    G08838512Courtesy of HYUNDAI MOTOR AMERICA
