DTC P0841: Transmission Fluid Pressure Sensor/Switch A Circuit Range/Performance
>>
General Information
>>
Specification
General Information: Specification
Pressure switch
It's operated over 1.4 bar, and not released below 0.5 bar

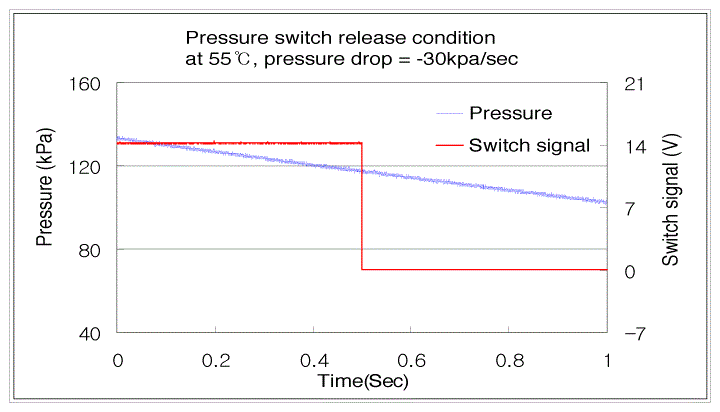

Fig 1: Transmission Fluid Pressure Sensor Characteristic Graph
Courtesy of HYUNDAI MOTOR AMERICA
