Components Location

2013

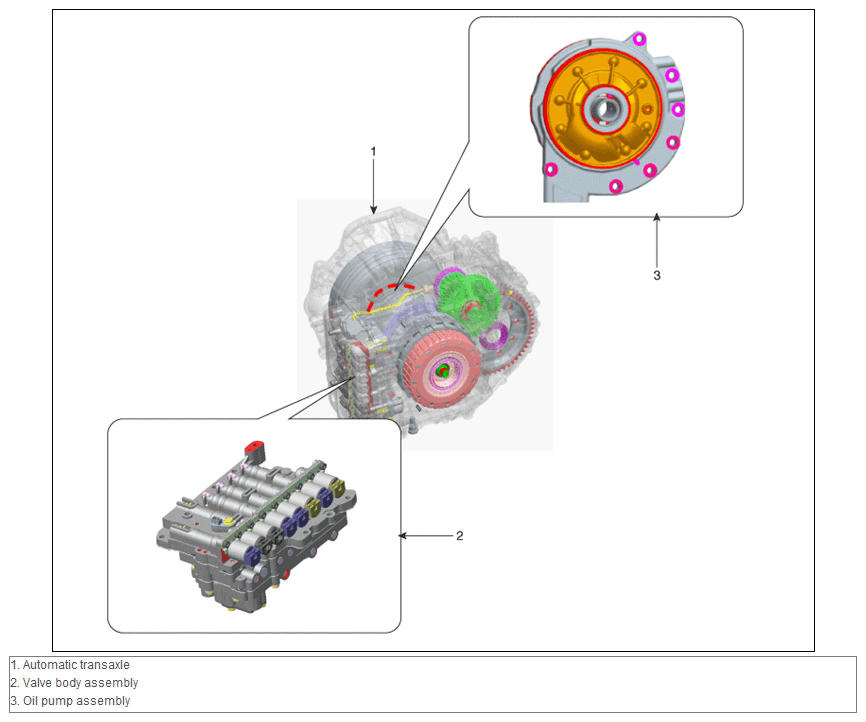

Fig 1: Hydraulic System Components Locations - 2013
G10242736Courtesy of HYUNDAI MOTOR AMERICA

2014

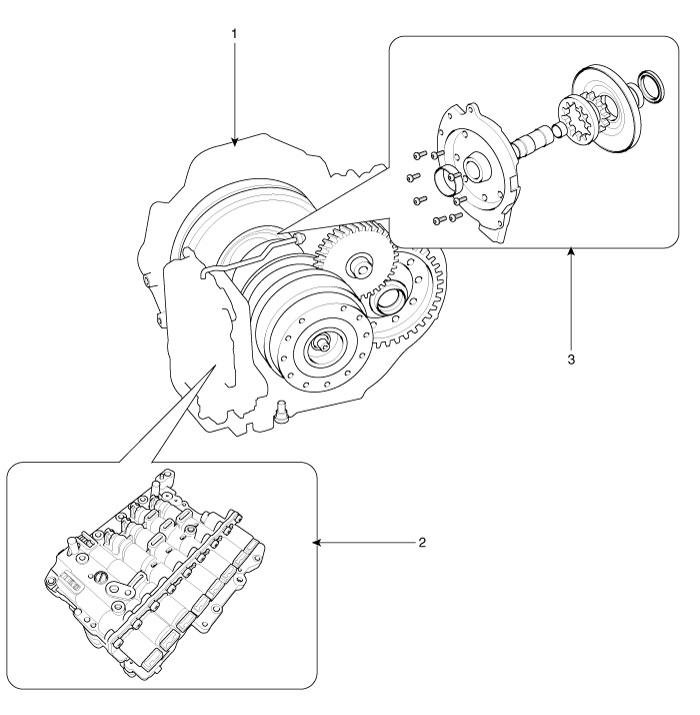

Fig 2: Hydraulic System Components Locations - 2014
G00558386Courtesy of HYUNDAI MOTOR AMERICA
1. Automatic transaxle
2. Valve body assembly
3. Oil pump assembly
