Circuit Diagram: (A/T)

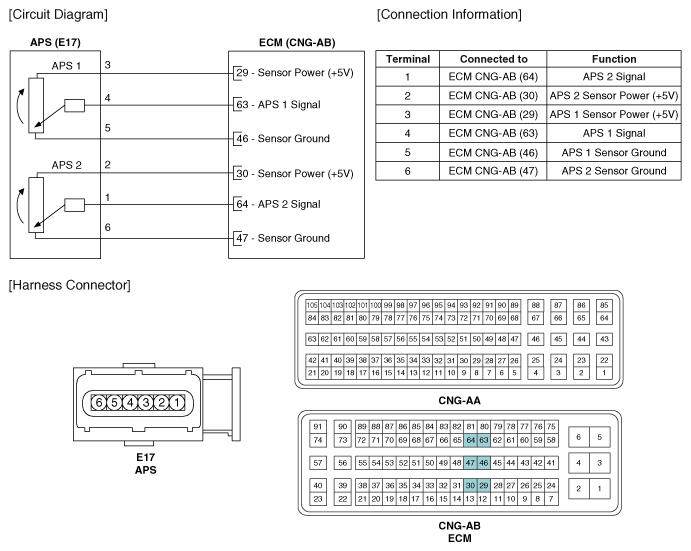

Fig 1: Acceleration Position Sensor Circuit Diagram (A/T)

G10234901

Courtesy of HYUNDAI MOTOR AMERICA
