Home >> Hyundai >> 2013 >> Elantra Limited >> Repair and Diagnosis >> Engine Mechanical >> Engine Lubrication System >> Oil Pump >> Components and Components Location >> Components

Components and Components Location: Components

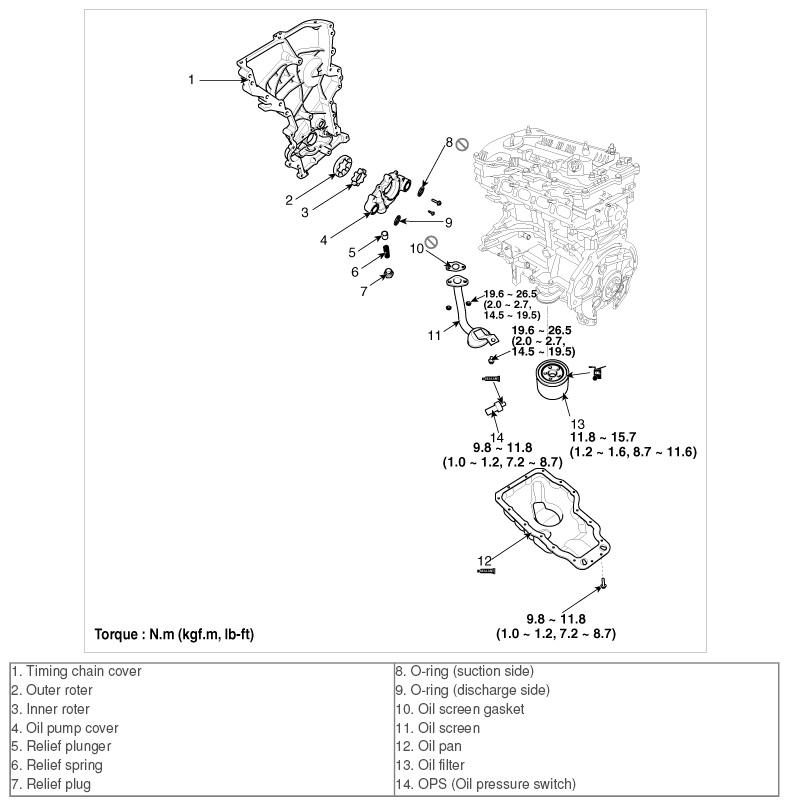

Fig 1: Oil Pump Components And Locations With Torque Specifications

G10234307

Courtesy of HYUNDAI MOTOR AMERICA
