Description and Operation: Description

Control shaft assembly is mounted on the top of the manual transaxle, and select & shift cable are equipped.

Control shaft assembly is operated by shifting the shift lever.

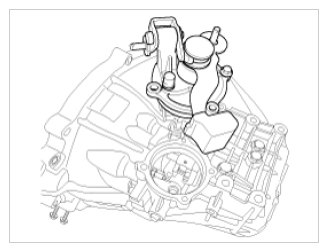

Fig 1: Identifying Control Shaft Complete
G09886138Courtesy of HYUNDAI MOTOR AMERICA
