Components and Components Location: Components

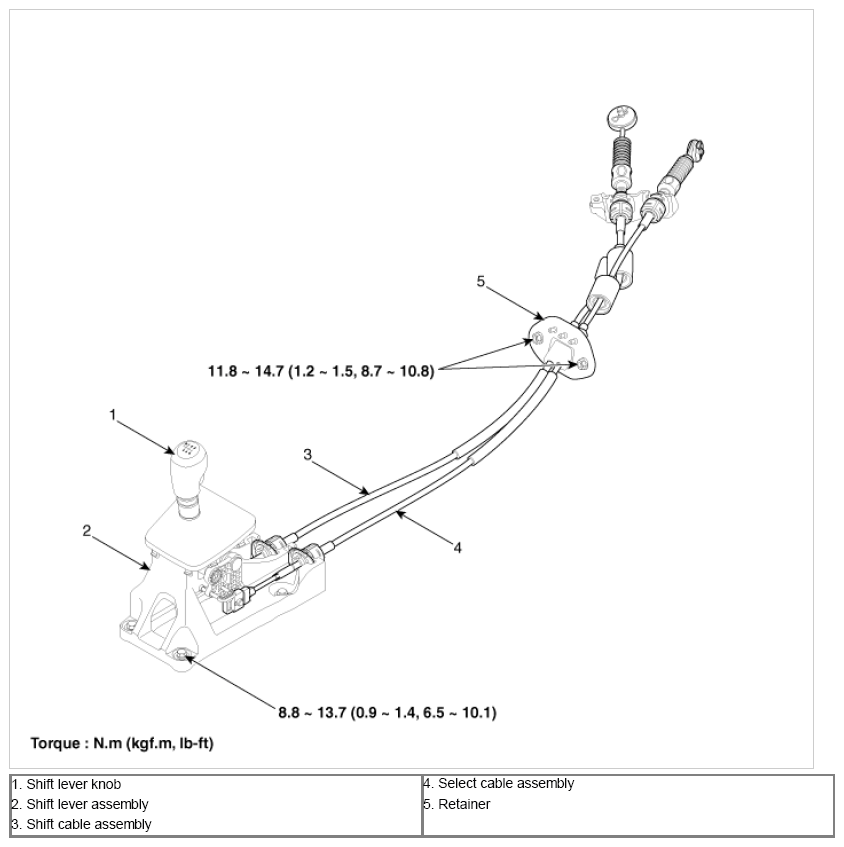

Fig 1: Control Cable Replacement Components With Torque Specifications

G09886120

Courtesy of HYUNDAI MOTOR AMERICA
