Circuit Diagram: (M/T)

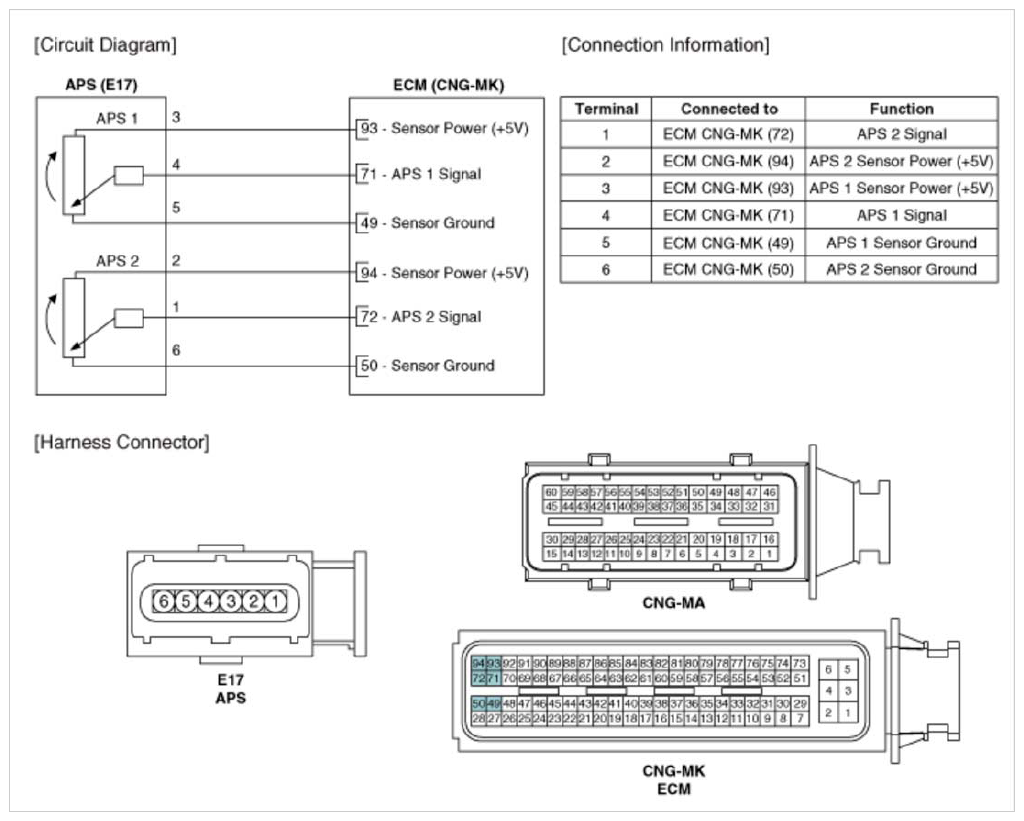

Fig 1: APS Schematic Diagrams (M/T)

G09885928

Courtesy of HYUNDAI MOTOR AMERICA
