Circuit Diagram: (A/T)

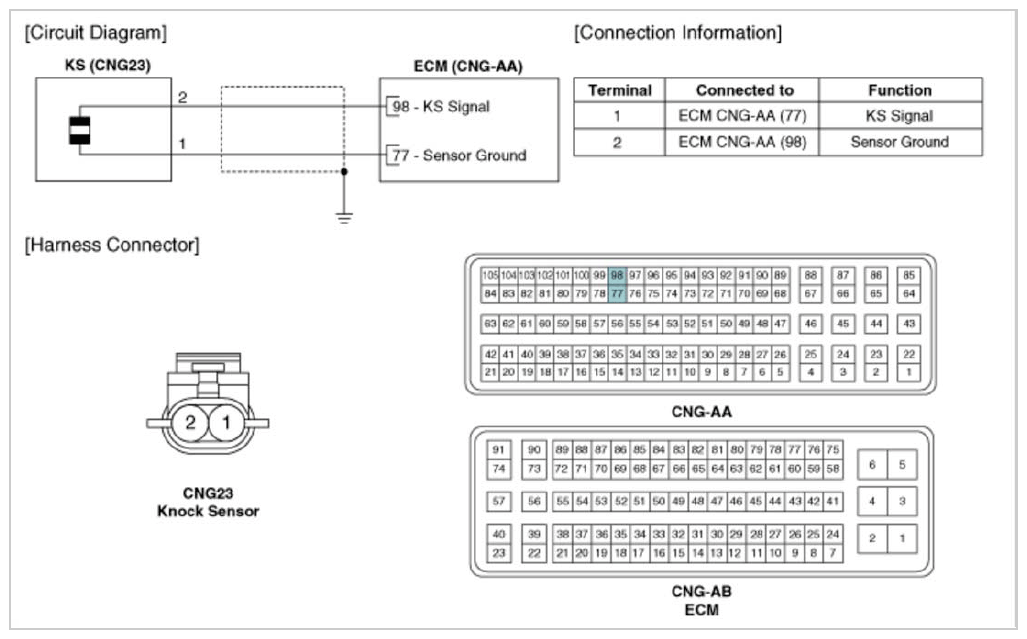

Fig 1: KS - CNG 23 Schematic Diagrams (A/T)

G09885912

Courtesy of HYUNDAI MOTOR AMERICA
