Power Window Main Switch Inspection

Disconnect the negative (-) battery terminal.
Remove the front door trim.
(Refer to "FRONT DOOR TRIM ")
Disconnect the connector from the switch.

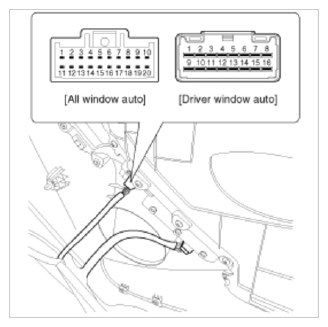

Fig 1: Identifying Power Window Main Switch Connector Pins
Courtesy of HYUNDAI MOTOR AMERICA
Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.
[All window auto]

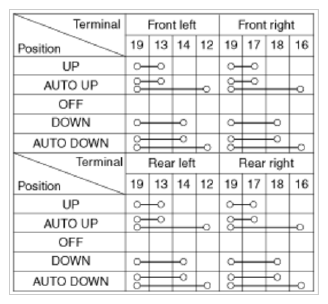

Fig 2: Checking Continuity Between All Window Auto Terminals
Courtesy of HYUNDAI MOTOR AMERICA

[Driver window auto]

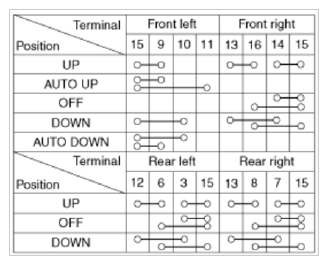

Fig 3: Checking Continuity Between Driver Window Auto Terminals
Courtesy of HYUNDAI MOTOR AMERICA
