Passenger/Rear Power Window Switch Inspection

Disconnect the negative (-) battery terminal.
Remove the front door trim.
(Refer to "FRONT DOOR TRIM ")

Remove the rear door trim.

(Refer to "REAR DOOR TRIM ")
Disconnect the connector from the switch.

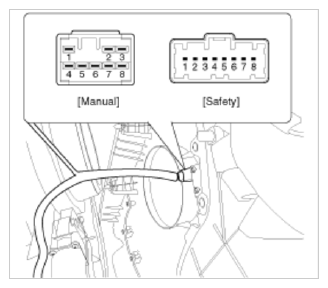

Fig 1: Identifying Passenger/Rear Power Window Switch Connector Pins
Courtesy of HYUNDAI MOTOR AMERICA
Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.
[Safety]

Fig 2: Checking Continuity Between Terminals (Safety)
Courtesy of HYUNDAI MOTOR AMERICA

[Manual]

Fig 3: Checking Continuity Between Terminals (Manual)
Courtesy of HYUNDAI MOTOR AMERICA
