Home >> Hyundai >> 2013 >> Elantra GT Automatic Trans >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Smart Key Unit System >> Smart key unit >> Repair Procedures >> Removal >> Buzzer

Repair Procedures: Removal: Buzzer

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front left wheel guard.
  3. Remove the buzzer (A) after disconnecting the connector.

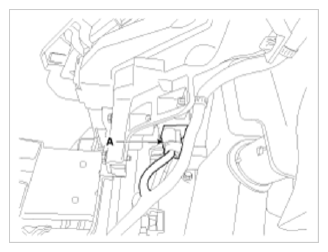

    Fig 1: Identifying Buzzer
    G09887387Courtesy of HYUNDAI MOTOR AMERICA
