W/Harness Inspection

WARNING: This page is about a different car, the 2014 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check the vehicle speed sensor by using the scan tool. (if normal, current vehicle speed is display)
  2. Check if current vehicle speed is same as vehicle speed displayed on the GDS

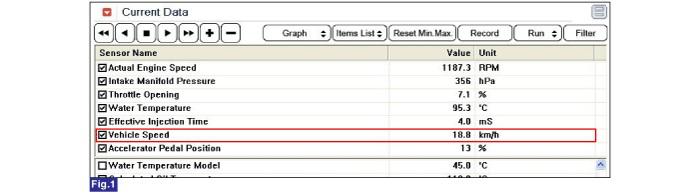

    3. Fig 1: Current Speed Sensor Display On GDS
    G00558261Courtesy of HYUNDAI MOTOR AMERICA
  3. Check the damage to the connectors and wiring.
  4. Check the power.
    1. Turn ignition switch OFF.
    2. Disconnect the vehicle speed sensor.
    3. Turn ignition switch ON.
    4. Check the voltage of the power terminal.

      5. Specification :

      11.5V ~ 13.0V

  5. Check the signal.
    1. Turn ignition switch OFF.
    2. Disconnet the vehicle speed sensor.
    3. Turn ignition switch ON.
    4. Check the voltage of the power terminal.

      5. Specification :

      8.0V ~ 11.5V

  6. Check the ground.
    1. Turn ignition switch OFF
    2. Disconnet the vehicle speed sensor.
    3. Turn ignition switch ON.
    4. Check the voltage between signal terminal and body ground
    5. Check the voltage between signal terminal and ground terminal.

      6. Specification:

      4) - 5) = Within 200mV
