Special Service Tools
WARNING: This page is about a different car, the 2014 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.
| Tool (Number and Name) |
Illustration | Use |
|---|---|---|
| 09200-3N000 Engine support fixture (Beam) |
Removal and installation of the transaxle. Use this adapter (SST No. : 09200-4X000) with the supporter (SST No. : 09200-2S000). *Permit operating with 09200-38001. |
|
| 09200-2S000 support fixture (Supporter) |
Removal and installation of the transaxle. Use this beam (SST No. : 09200-38001/3N000) with the supporter (SST No. : 09200-2S000) and adapter (SST No. : 09200-4X000). |
|
| 09200-4X000 Engine support fixture (Adapter) |
Removal and installation of the transaxle. Use this beam (SST No. : 09200-38001/3N000) with the supporter (SST No. : 09200-2S000). |
|
| 09453-2F300 Oil seal installer |
Installation of transaxle case oil seal. |

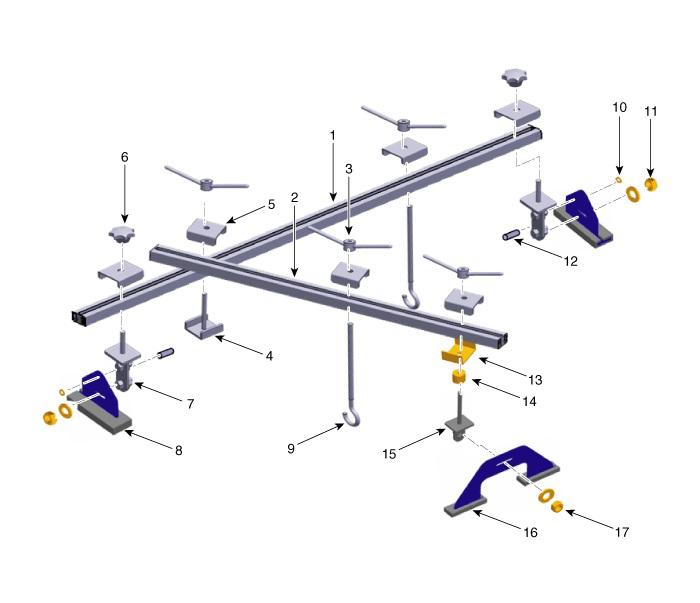

*Engine support fixture special tool assembly drawing
| 1. 09200-3N000 (Main bar) | 10. 09200-3N000 (Clip) |
| 2. 09200-3N000 (Sub bar) | 11. 09200-3N000 (Nut) |
| 3. 09200-3N000 (Handle) | 12. 09200-3N000 (Pin) |
| 4. 09200-3N000 (Stopper) | 13. 09200-2S000 (Stopper) |
| 5. 09200-3N000 (Stopper) | 14. 09200-2S000 (Spacer) |
| 6. 09200-3N000 (Knob) | 15. 09200-2S000 (Adapter) |
| 7. 09200-3N000 (Adapter) | 16. 09200-2S000 (Supporter) |
| 7. 09200-3N000 (Adapter) 8. 09200-2S000 (Supporter) | 17. 09200-2S000 (Nut) |
| 9. 09200-3N000 (Hanger) |
