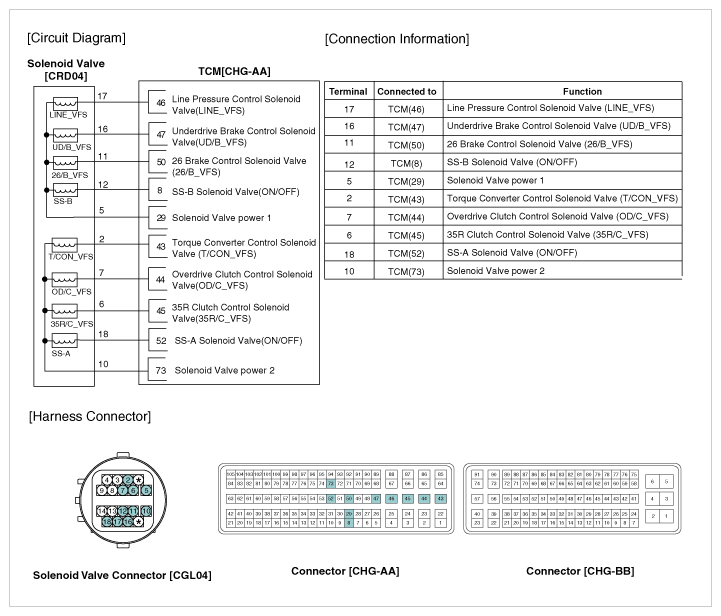

Home >> Hyundai >> 2013 >> Elantra GLS, Automatic Trans >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System >> Torque Converter Control Solenoid Valve >> Schematic Diagrams >> Circuit Diagram
