Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

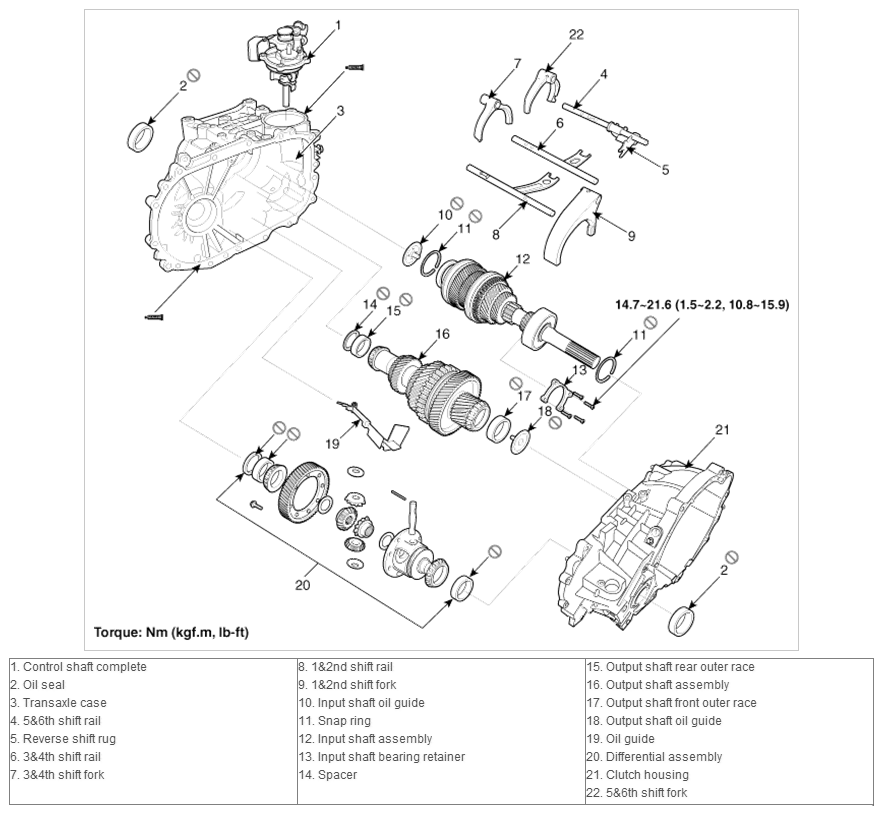

Fig 1: Manual Transaxle Components With Torque Specification
G10234943Courtesy of HYUNDAI MOTOR AMERICA
