Circuit Diagram: (A/T)

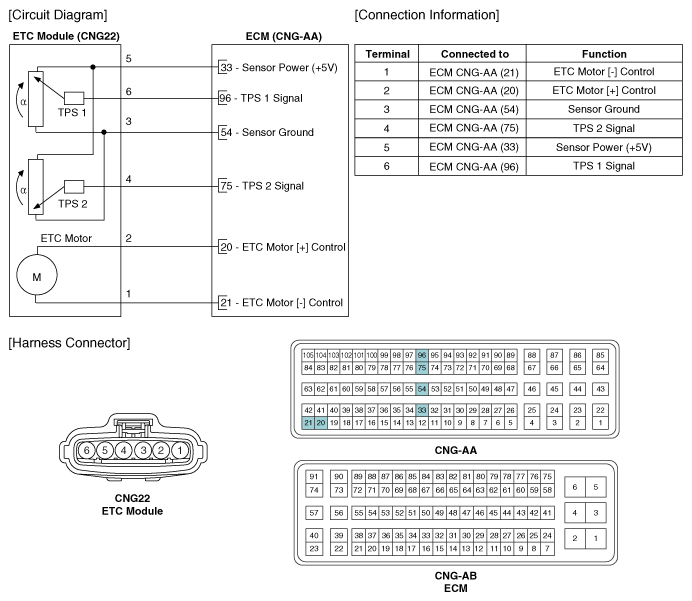

Fig 1: ETC Module Circuit Diagram (A/T)
G10234855Courtesy of HYUNDAI MOTOR AMERICA
