Components and Components Location: Components

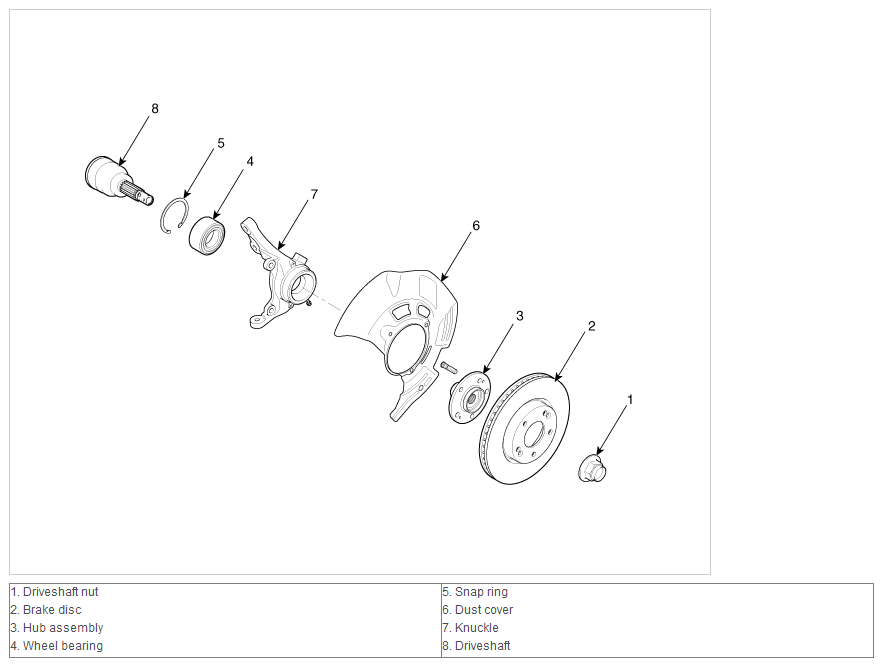

Fig 1: Front Axle Assembly Components Locations

G10242773

Courtesy of HYUNDAI MOTOR AMERICA
