Driver Power Window Switch

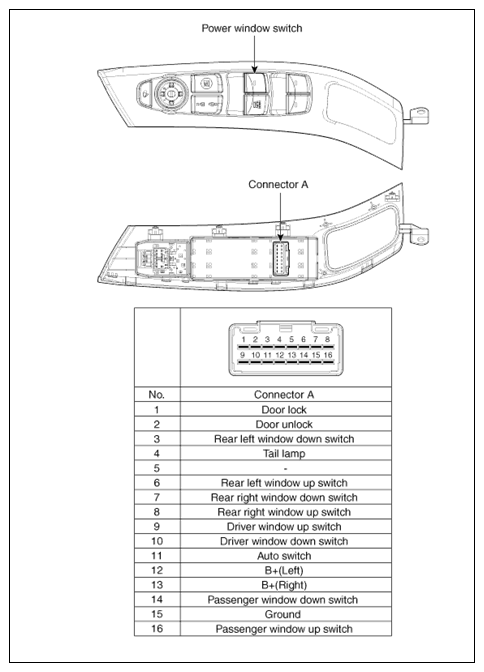

Fig 1: Driver Power Window Switch Terminal Identification

G10244149

Courtesy of HYUNDAI MOTOR AMERICA
