FOB Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IGN ON, select the "FOB KEY STATUS INFO".

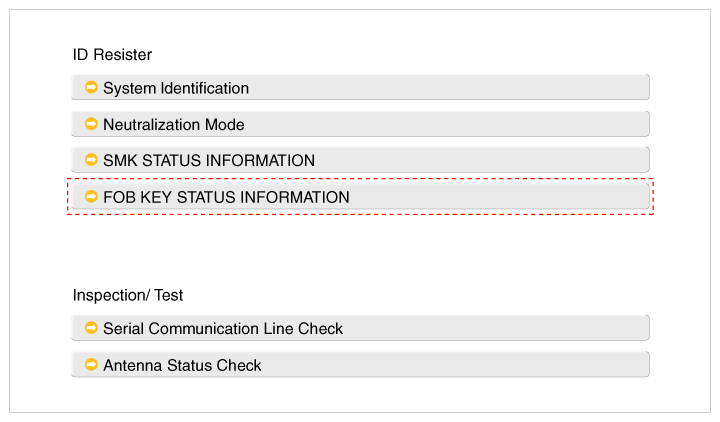

    Fig 1: Screen Display - ID Resister And Inspection/Test
    G10243891Courtesy of HYUNDAI MOTOR AMERICA

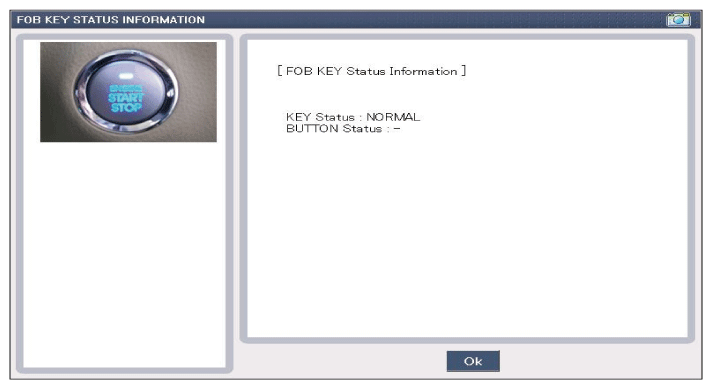

    Fig 2: Screen Display - FOB Key Status Information
    G10243892Courtesy of HYUNDAI MOTOR AMERICA
