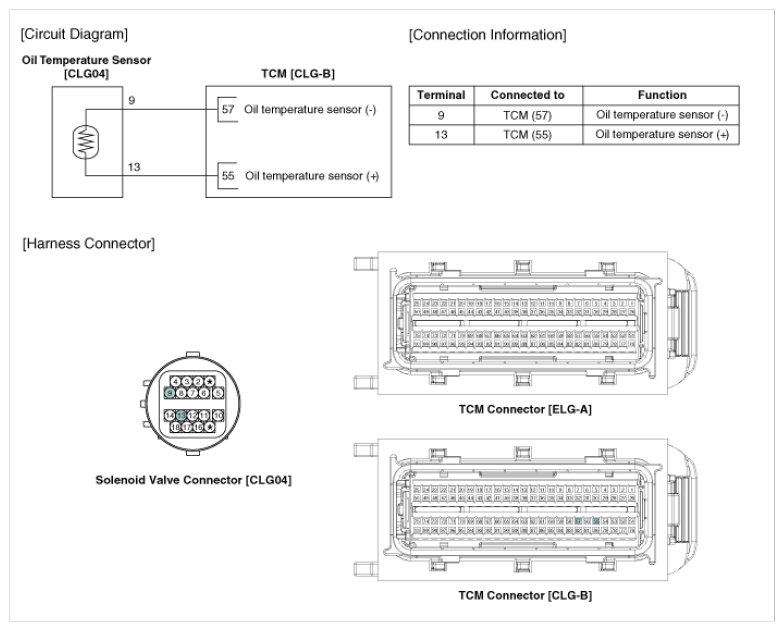

Home >> Hyundai >> 2013 >> Azera >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System >> Transaxle Oil Temperature Sensor >> Schematic Diagrams >> Circuit Diagram
