Repair Procedures: Removal

  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  2. Remove the glove box housing.

    (Refer to "GLOVE BOX HOUSING ")

  3. Remove the passenger airbag mounting bolts (A).

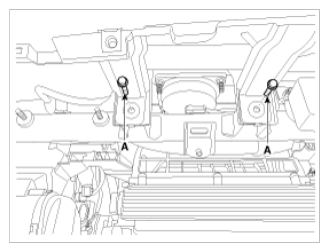

    Fig 1: Identifying Passenger Airbag Mounting Bolts
    G08810312Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the passenger airbag connector (A) and active vent connector (B).

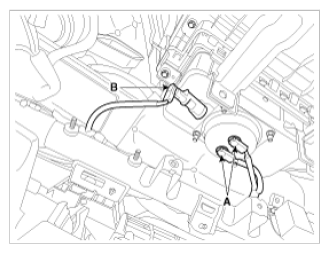

    Fig 2: Identifying Passenger Airbag Connector And Active Vent Connector
    G08810313Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the crash pad.

    (Refer to "MAIN CRASH PAD ASSEMBLY ")

    NOTE: Replace the crash pad which is damaged while PAB is deployed.
  6. Remove the mounting bolts from the crash pad. Then remove the passenger airbag.
    CAUTION: The removed airbag module should be stored in a clean, dry place with the airbag cushion up.
