Repair Procedures: Inspection

  1. Connect the battery voltage and check the blower motor rotation.

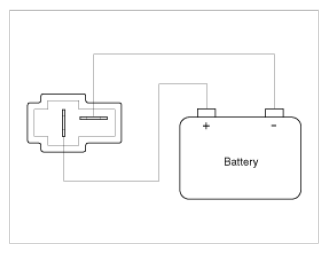

    Fig 1: Checking Blower Motor Rotation Using Battery Voltage
    G08814826Courtesy of HYUNDAI MOTOR AMERICA
  2. If the blower motor voltage is not operated well, substitute with a known-good blower motor and check for proper operation.
  3. If the problem is corrected, replace the blower motor.
