Piston Pins

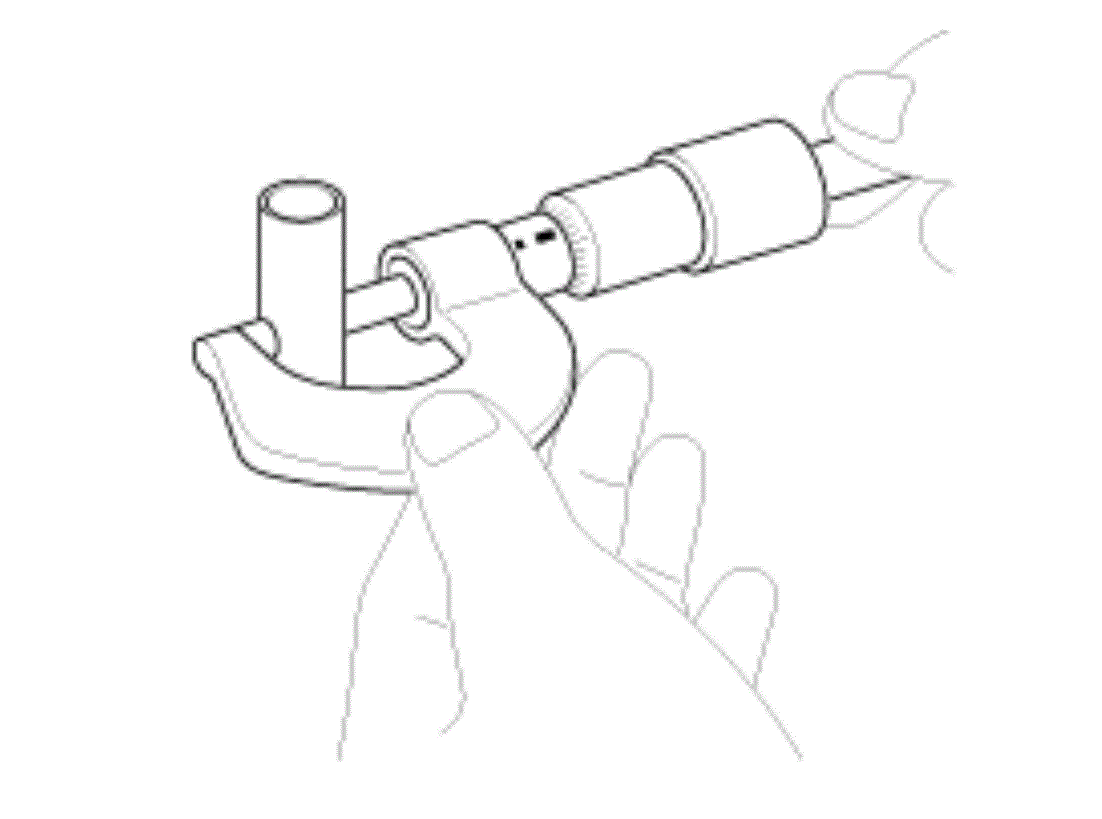

- Measure the diameter of the piston pin.
Piston pin diameter:
21.097 ~ 22.000mm (0.8305 ~ 0.8661in.)
- Measure the piston pin-to-piston clearance.
Piston pin-to-piston clearance:
0.004 ~ 0.013mm (0.00015~ 0.00051in.)
- Check the difference between the piston pin diameter and the connecting rod small end diameter.
Piston pin-to-connecting rod interference:
0.005 ~ 0.019mm (0.00019 ~ 0.00074in.)
