Repair Procedures: Replacement: Removal

Remove the roof trim.
(Refer to "ROOF TRIM ASSEMBLY ")

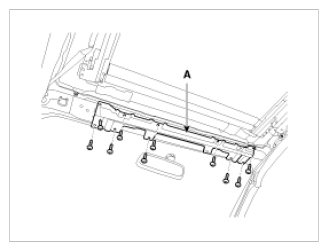

After loosening the mounting screws, then remove the roll blind lower bracket (A).

Fig 1: Identifying Roll Blind Lower Bracket
Courtesy of HYUNDAI MOTOR AMERICA

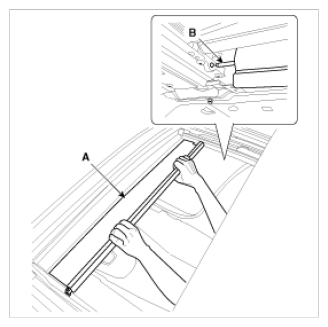

Remove the roll blind (A) by pulling it at a right angle.
CAUTION:
- When you removing it, be care of that an edge (B) is dashed against the frame of vehicle because the roll blind tension looses.
Fig 2: Removing Roll Blind
Courtesy of HYUNDAI MOTOR AMERICA
