Repair Procedures: Replacement

  1. Open the movable glass fully.
  2. Remove the panoramaroof deflector mounting bracket (A) as arrow.
    Fig 1: Removing Panoramaroof Deflector Mounting Bracket
    G08810625Courtesy of HYUNDAI MOTOR AMERICA
  3. After loosening the mounting screws, then remove the panoramaroof deflector (A).

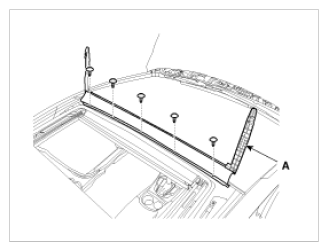

    Fig 2: Identifying Panoramaroof Deflector With Mounting Screws
    G08810626Courtesy of HYUNDAI MOTOR AMERICA
  4. Installation is the reverse of removal.
