Repair Procedures: Replacement: Removal

Remove the roof trim.
(Refer to "ROOF TRIM ASSEMBLY ")
Remove the rear window glass.
(Refer to "REAR WINDOW GLASS ")
Remove the movable glass.
(Refer to "MOVABLE GLASS ")
Remove the roof antenna.
(Refer to "ROOF ANTENNA ")
Remove the roof side molding.
(Refer to "ROOF SIDE MOLDING ")
Remove the panoramaroof deflector.
(Refer to Panoramaroof - "PANORAMAROOF DEFLECTOR ")
Loosen the panoramaroof mounting nuts (A).
Tightening torque:

3.9 ~ 5.9 N.m (0.4 ~ 0.6 kgf.m, 2.9 ~ 4.3 lb-ft)

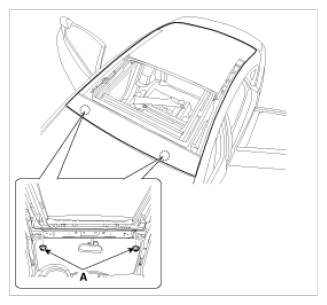

[Front]

Fig 1: Identifying Panoramaroof Mounting Nuts (Front)
Courtesy of HYUNDAI MOTOR AMERICA

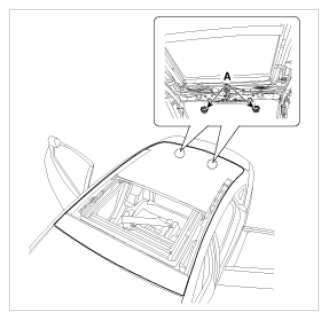

[Rear]

Fig 2: Identifying Panoramaroof Mounting Nuts (Rear)
Courtesy of HYUNDAI MOTOR AMERICA

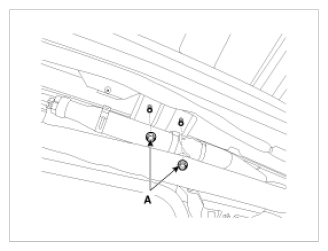

Loosen the panoramaroof side mounting nuts (A).
Tightening torque:

3.9 ~ 5.9 N.m (0.4 ~ 0.6 kgf.m, 2.9 ~ 4.3 lb-ft)

Fig 3: Identifying Panoramaroof Side Mounting Nuts
Courtesy of HYUNDAI MOTOR AMERICA

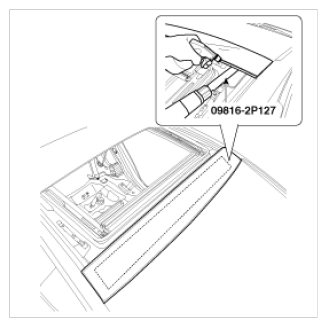

Open the space between chassis and front glass using flathead screwdriver, and then cut the sealant of rear and side using a tool (09816-2P127).
NOTE:
- Be careful not to damage the front glass when inserting tools between the chassis and front glass.
Fig 4: Cutting Rear And Side Sealant Using Tool
Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Front glass is need to changed to new product surely.

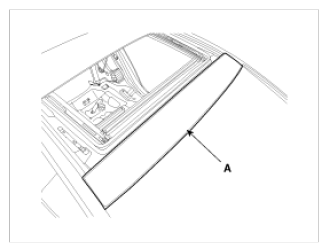

Remove the front glass (A).

Fig 5: Identifying Front Glass
Courtesy of HYUNDAI MOTOR AMERICA

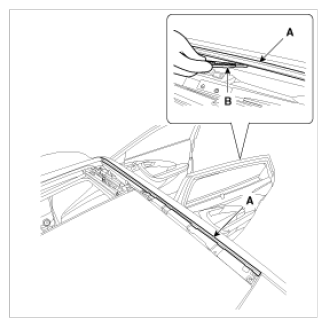

Cut out the panoramaroof side seal (A) using the cutter (B).
NOTE:
- Panoramaroof side seal needs to be changed to insure product quality.
Fig 6: Cutting Out Panoramaroof Side Seal Using Cutter
Courtesy of HYUNDAI MOTOR AMERICA

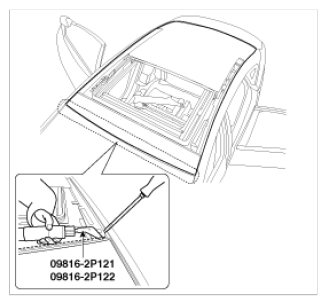

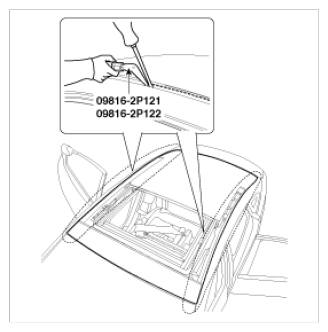

Open the space between chassis and sunroof using flathead screwdriver, and then cut the sealant of front using a tool (09816-2P121, 09816-2P122).
NOTE:
- This blade has a inclination to push upward. (09816-2P121, 09816-2P122)
- This blade has a inclination to push downward. (09816-2P123, 09816-2P124)
Fig 7: Cutting Front Sealant Using Tool
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Be careful not to damage the panoramaroof when inserting tools between the chassis and panoramaroof.
Open the space between chassis and sunroof using flathead screwdriver, and then cut the sealant of aside using a tool (09816-2P121, 09816-2P122).
NOTE:
- This blade has a inclination to push upward. (09816-2P121, 09816-2P122)
- This blade has a inclination to push downward. (09816-2P123, 09816-2P124)
Fig 8: Cutting Aside Sealant Using Tool
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Be careful not to damage the panoramaroof when inserting tools between the chassis and panoramaroof.

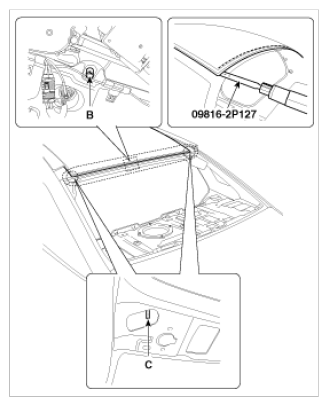

Open the space between chassis and sunroof using flathead screwdriver, and then cut the sealant of rear using a tool (09816-2P127).
NOTE:
- Be careful of breaking center hole (B).
- Be careful of breaking nut hole (C).
Fig 9: Cutting Rear Sealant Using Tool
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Be careful not to damage the panoramaroof when inserting tools between the chassis and panoramaroof.

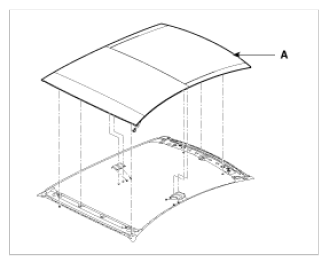

Cut the tape between the panoramaroof and the body. remove the panoramaroof (A).
NOTE:
- Work with a minimum of four persons when lifting the panoramaroof on or off the vehicle.
Fig 10: Identifying Panoramaroof
Courtesy of HYUNDAI MOTOR AMERICA
