Repair Procedures: Replacement

CAUTION:

Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
Put on gloves to protect your hands.

Remove the rear seat assembly.
(Refer to "REAR SEAT ASSEMBLY ")

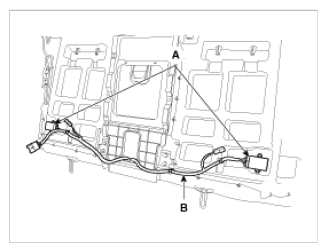

Disconnect the connectors (A), and mounting wiring clips (B).

Fig 1: Identifying Connectors And Mounting Wiring Clips
Courtesy of HYUNDAI MOTOR AMERICA

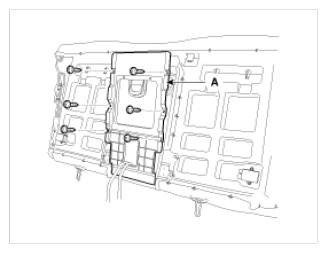

After loosening the mounting screws, then remove the rear back armrest board (A).

Fig 2: Identifying Rear Back Armrest Board
Courtesy of HYUNDAI MOTOR AMERICA

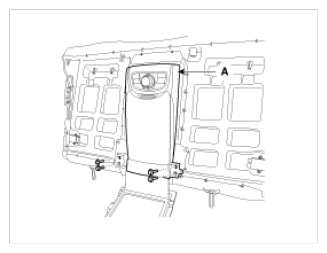

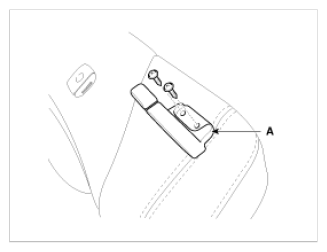

After loosening the mounting bolts, then remove the rear back armrest (A).

Fig 3: Identifying Rear Back Armrest
Courtesy of HYUNDAI MOTOR AMERICA

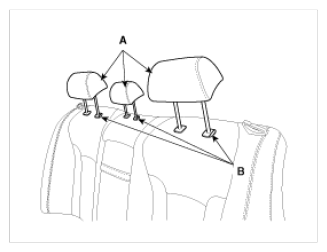

Push the lock pin (B), remove the headrest (A).

Fig 4: Identifying Headrest And Lock Pin
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting screws, then remove the rear seat back webbing guide (A).

Fig 5: Identifying Rear Seat Back Webbing Guide
Courtesy of HYUNDAI MOTOR AMERICA

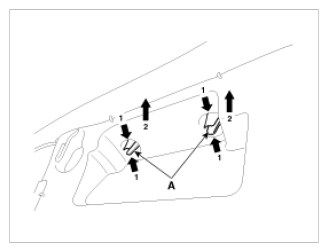

Pull out the headrest guides (A) while pinching the end of the guides, and remove them.

Fig 6: Pulling Out Headrest Guides
Courtesy of HYUNDAI MOTOR AMERICA

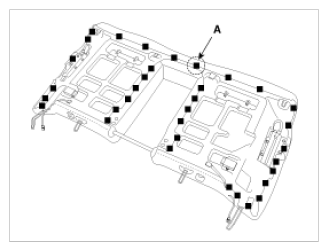

Remove the hog-ring clips (A).

Fig 7: Identifying Hog-Ring Clips
Courtesy of HYUNDAI MOTOR AMERICA

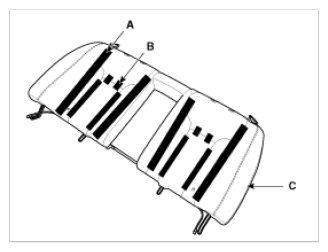

After removing the velcro tape (A) and hog-ring clips (B) on the rear of seat back and remove the rear seat back cover (C).

Fig 8: Identifying Velcro Tape, Hog-Ring Clips And Rear Seat Back Cover
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.

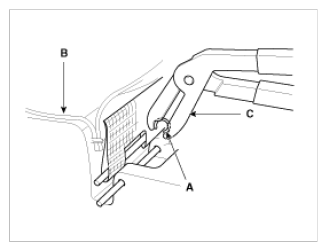

NOTE:
- To prevent wrinkles, make sure the material is stretched evenly over the cover (B) before securing the hog-ring clips (A).
- Replace the hog-ring clips with new ones using special tool [C (09880-4F000)].
Fig 9: Replacing Hog-Ring Clips Using Special Tool
Courtesy of HYUNDAI MOTOR AMERICA
