Repair Procedures: Replacement

After loosening the mounting bolts, then remove the rear seat cushion assembly (A).
Tightening torque: 16.7 ~ 25.5N.m (1.7 ~ 2.6kgf.m, 12.3~18.8lb-ft)

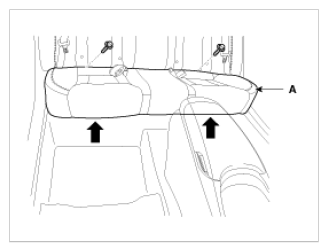

Fig 1: Removing Rear Seat Cushion Assembly
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the rear seat cushion heater connector (A).

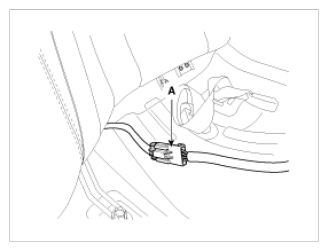

Fig 2: Identifying Rear Seat Cushion Heater Connector
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting bolts, then remove the rear seat back assembly (A).
Tightening torque: 16.7 ~ 25.5N.m (1.7 ~ 2.6kgf.m, 12.3~18.8lb-ft)

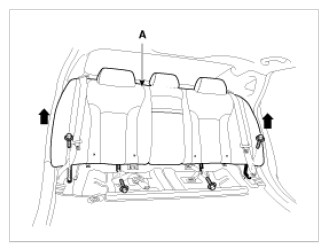

Fig 3: Removing Rear Seat Back Assembly
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the rear seat back heater connector (A) and airbag connector (B).
[LH]

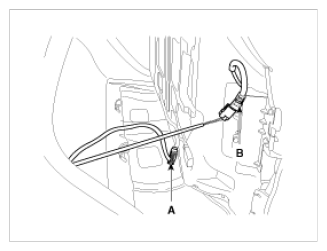

Fig 4: Identifying Rear Seat Back Heater And Airbag Connector (LH)
Courtesy of HYUNDAI MOTOR AMERICA

[RH]

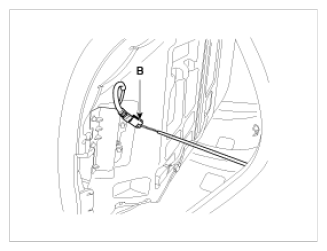

Fig 5: Identifying Rear Seat Back Heater And Airbag Connector (RH)
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Make sure the connector is plugged in properly.
