Repair Procedures: Replacement

CAUTION:

Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
Put on gloves to protect your hands.

Using a screwdriver or remover, remove the front door scuff trim (A).
[Front]

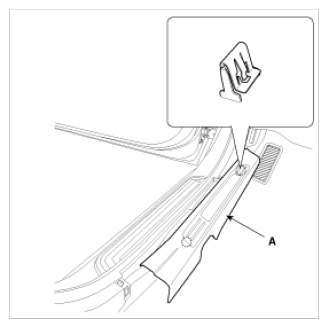

Fig 1: Identifying Front Door Scuff Trim
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connector (A).

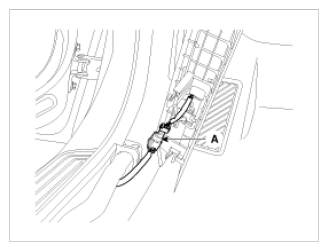

Fig 2: Identifying Front Door Scuff Trim Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the rear seat cushion assembly.
(Refer to "REAR SEAT ASSEMBLY ")
After loosening the mounting screw, then remove the rear door scuff trim (A).
[Rear]

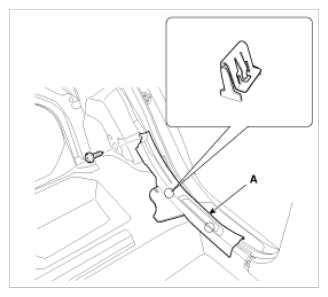

Fig 3: Identifying Rear Door Scuff Trim
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connector (A).

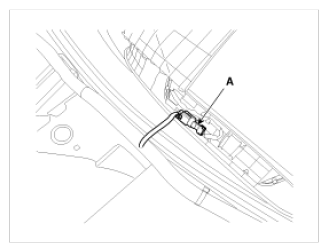

Fig 4: Identifying Rear Door Scuff Trim Connector
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Make sure the connector are connected in properly.
- Replace any damaged clips.
