Repair procedures: Replacement

CAUTION:

Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
Put on gloves to protect your hands.

Remove the front door scuff trim.
(Refer to "DOOR SCUFF TRIM ")
Remove the hood latch release handle.
(Refer to "HOOD LATCH RELEASE HANDLE ")
Detach the clips, then remove the cowl side trim (A).

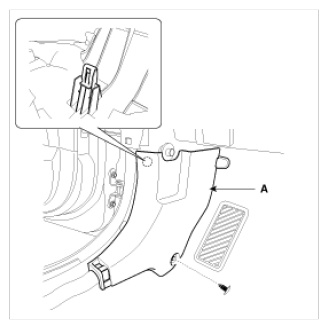

Fig 1: Identifying Cowl Side Trim
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Replace any damaged clips.
