Repair procedures: Replacement

CAUTION:

Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
Put on gloves to protect your hands.

Remove the front door scuff trim.
(Refer to "DOOR SCUFF TRIM ")
Remove the rear door scuff trim.
(Refer to "DOOR SCUFF TRIM ")

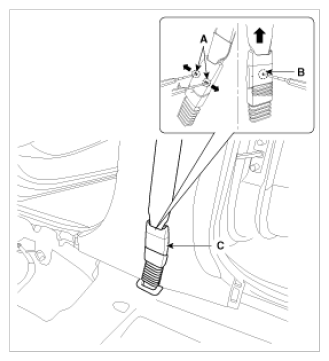

To remove the seat belt anchor pretensioner (C), keep on pushing the lock pins (A) as arrow direction and then remove the seat belt after pushing the lock pin (B).

Fig 1: Removing Seat Belt Anchor Pretensioner
Courtesy of HYUNDAI MOTOR AMERICA

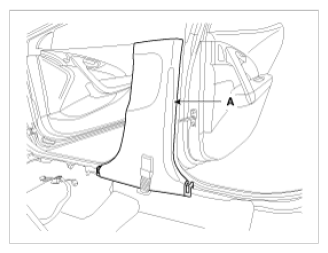

Remove the center pillar lower trim (A).

Fig 2: Identifying Center Pillar Lower Trim
Courtesy of HYUNDAI MOTOR AMERICA

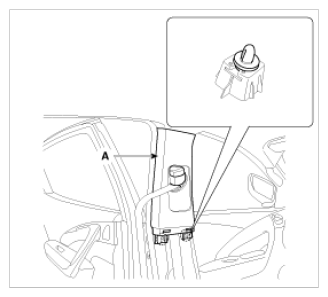

Remove the center pillar upper trim (A).

Fig 3: Identifying Center Pillar Upper Trim
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Replace any damaged clips.
