Teaching MODE Procedure Description (Step By Step)

Objective: Key teaching procedure at service station

Initial state:

• SMK replacement: SMK is not learned, ESCL and SMART FOB are already learned with same PIN code
• ESCL replacement: ESCL is not learned, SMK and SMART FOB are already learned with same PIN code
• Additional or new keys teaching: SMK and ESCL are already learned with same PIN code

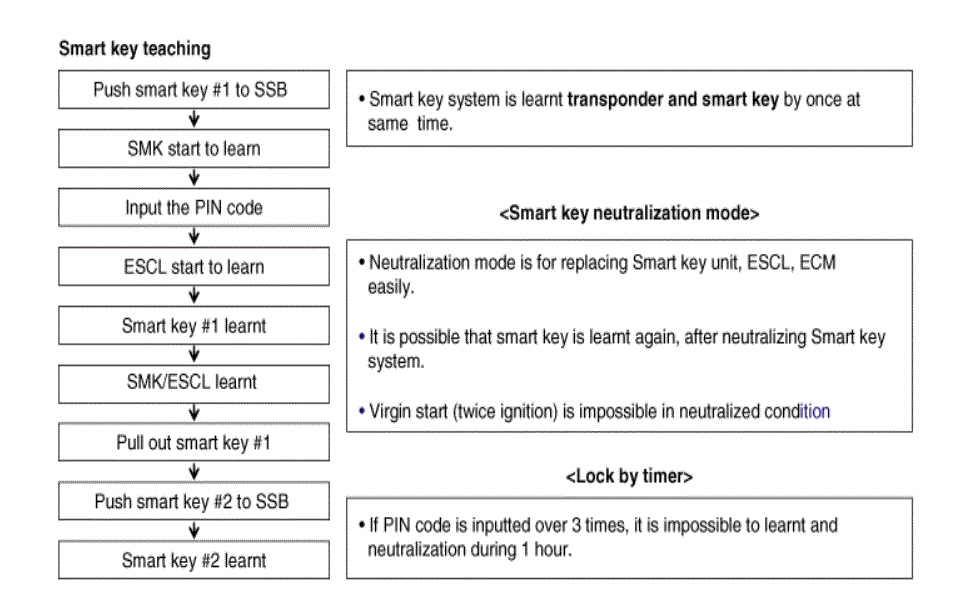

  Fig 1: Teaching Mode Procedure Workflow Chart

  Courtesy of HYUNDAI MOTOR AMERICA
