Circuit Diagram: (A/T)

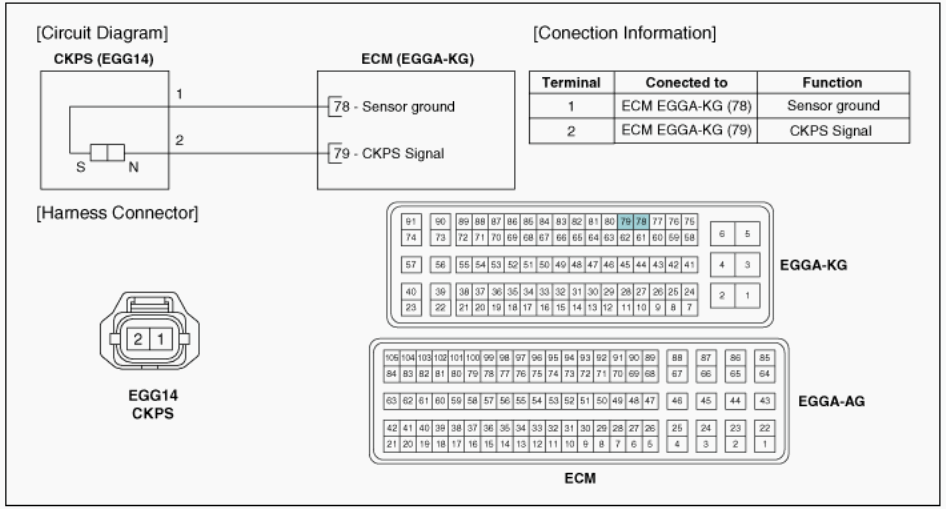

Fig 1: Crankshaft Position Sensor - Circuit Diagram (A/T)

G08804433

Courtesy of HYUNDAI MOTOR AMERICA
