Repair procedures: Replacement

  1. Remove the front wheel & tire.

    Tightening torque:

    88.3 ~ 107.9N.m (9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)

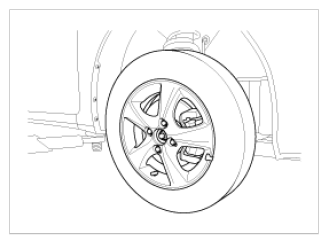

    Fig 1: Identifying Front Wheel And Tire
    G08805357Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: Be careful not to damage to the hub bolts when removing the front wheel & tire.
  2. Disconnect the stabilizer link (B) with the front strut assembly (A) after loosening the nut.

    Tightening torque:

    98.1 ~ 117.7N.m (10.0 ~ 12.0kgf.m, 72.3 ~ 86.8lb-ft)

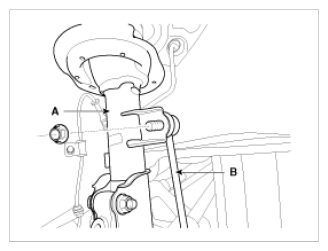

    Fig 2: Identifying Stabilizer Link And Front Strut Assembly
    G08805358Courtesy of HYUNDAI MOTOR AMERICA
  3. Loosen the nut and then remove the tie-rod end (A) with the front axle (B).

    Tightening torque:

    23.5 ~ 33.3N.m (2.5 ~ 3.4kgf.m, 19.4 ~ 24.6lb-ft)

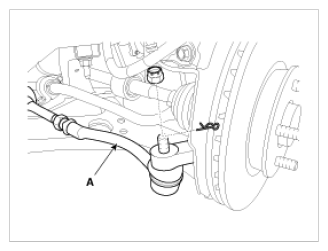

    Fig 3: Identifying Tie-Rod With Mounting Nuts
    G08805359Courtesy of HYUNDAI MOTOR AMERICA
  4. Loosen the nut and then remove the lower arm (A).

    Tightening torque:

    58.8 ~ 70.6N.m (6.0 ~ 7.2kgf.m, 43.4 ~ 52.1lb-ft)

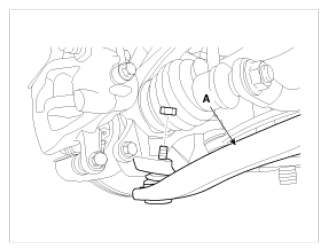

    Fig 4: Identifying Lower Arm
    G08805360Courtesy of HYUNDAI MOTOR AMERICA
  5. Loosen the bolt (A) and then disconnect the universal joint assembly from the pinion of the steering gear box.

    Tightening torque:

    32.4 ~ 37.3N.m (3.3 ~ 3.8kgf.m, 23.9 ~ 27.5lb-ft)

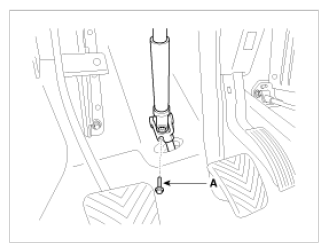

    Fig 5: Identifying Universal Joint Assembly And Mounting Bolt
    G08805361Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • Lock the steering wheel in the straight ahead position to prevent the damage of the clock spring inner cable when you handle the steering wheel.
    • Must be replaced with new bolts when assembling. (SEAL-LOCK has been processed) SEAL-LOCK Specifications: MS721-39 "TYPE-D" Product: ND industries 1193S
  6. Remove the rubber hanger (A).

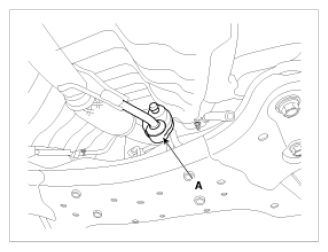

    Fig 6: Identifying Rubber Hanger
    G08805362Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the cross member from the body by loosening the roll rod (A) mounting bolts and nuts.

    Tightening torque:

    53.9 ~ 63.7N.m (5.5 ~ 6.5kgf.m, 39.8 ~ 47.0lb-ft)

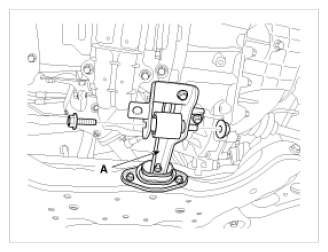

    Fig 7: Identifying Cross Member Roll Rod With Mounting Bolts And Nuts
    G08805363Courtesy of HYUNDAI MOTOR AMERICA
  8. Loosen the bolts & nuts and then remove the front sub frame (A).

    Tightening torque:

    Sub frame mounting bolt & nut

    156.9 ~ 176.5N.m (16.0 ~ 18.0kgf.m, 115.7 ~ 130.2lb-ft)

    Sub frame stay mounting bolt

    44.1 ~ 53.9N.m (4.5 ~ 5.5kgf.m, 32.5 ~ 39.8lb-ft)

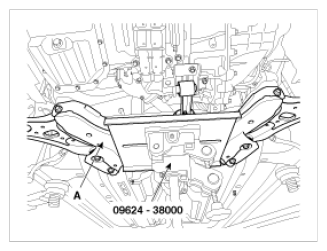

    Fig 8: Identifying Front Sub Frame Mounting Bolts And Nuts (1 Of 5)
    G08805364Courtesy of HYUNDAI MOTOR AMERICA

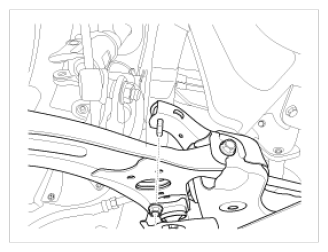

    Fig 9: Identifying Front Sub Frame Mounting Bolts And Nuts (2 Of 5)
    G08805365Courtesy of HYUNDAI MOTOR AMERICA

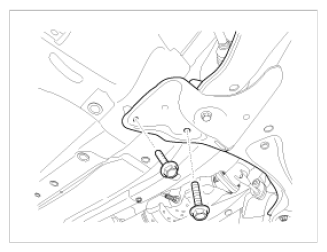

    Fig 10: Identifying Front Sub Frame Mounting Bolts And Nuts (3 Of 5)
    G08805366Courtesy of HYUNDAI MOTOR AMERICA

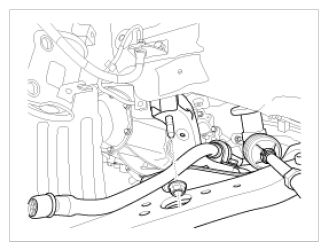

    Fig 11: Identifying Front Sub Frame Mounting Bolts And Nuts (4 Of 5)
    G08805367Courtesy of HYUNDAI MOTOR AMERICA

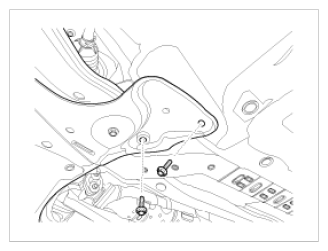

    Fig 12: Identifying Front Sub Frame Mounting Bolts And Nuts (5 Of 5)
    G08805368Courtesy of HYUNDAI MOTOR AMERICA
  9. Installation is the reverse of removal.
