Repair procedures: Replacement

Remove the front wheel & tire.
Tightening torque:

88.3 ~ 107.9N.m (9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)

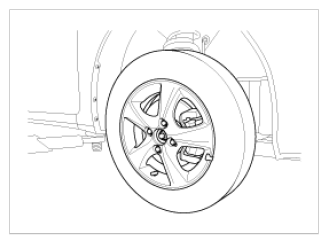

Fig 1: Identifying Front Wheel And Tire
Courtesy of HYUNDAI MOTOR AMERICA

CAUTION: Be careful not to damage to the hub bolts when removing the front wheel & tire.
Remove the brake hose (A) and the wheel speed sensor bracket (B) and wheel speed sensor (C) from the front strut assembly by loosening the mounting bolts.
Tightening torque:

(B, C) 7.8 ~ 11.8N.m (0.8 ~ 1.2kgf.m, 5.8 ~ 8.7lb-ft)

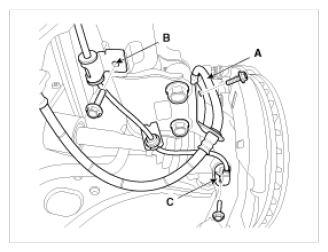

Fig 2: Identifying Brake Hose, Wheel Speed Sensor And Bracket With Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the stabilizer link (B) with the front strut assembly (A) after loosening the nut.
Tightening torque:

98.1 ~ 117.7N.m (10.0 ~ 12.0kgf.m, 72.3 ~ 86.8lb-ft)

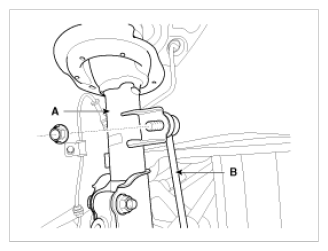

Fig 3: Identifying Stabilizer Link And Front Strut Assembly
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the strut mounting nut (A).
Tightening torque:

49.0 ~ 58.8N.m (5.0 ~ 6.0kgf.m, 36.2 ~ 43.4lb-ft)

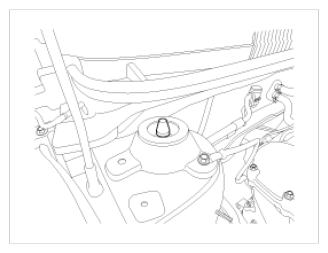

Fig 4: Strut Mounting
Courtesy of HYUNDAI MOTOR AMERICA

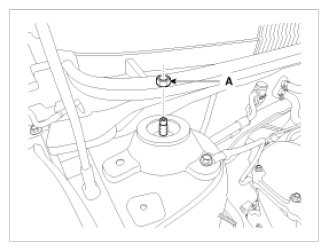

Fig 5: Identifying Strut Mounting Nut
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the front strut assembly (A) with the front axle (B) by loosening the bolt & nut.
Tightening torque:

137.3 ~ 156.9N.m (14.0 ~ 16.0kgf.m, 101.3 ~ 115.7lb-ft)

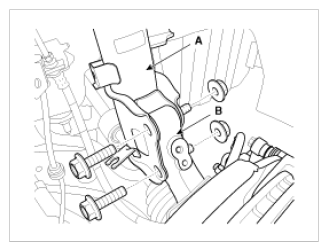

Fig 6: Identifying Front Strut Assembly, Front Axle, Mounting Bolts And Nuts
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
CAUTION:
- Tighten with specified torque at curb position of vehicle
- Fix the strut rod and tighten the nut
