Disassembly and Reassembly
- Compress the coil spring with a strut spring compressor. Do not compress the spring more than necessary.
- Loosen the lock nut.
Tightening torque:
49.0 ~ 58.8N.m (5.0 ~ 6.0kgf.m, 36.2 ~ 43.4lb-ft)

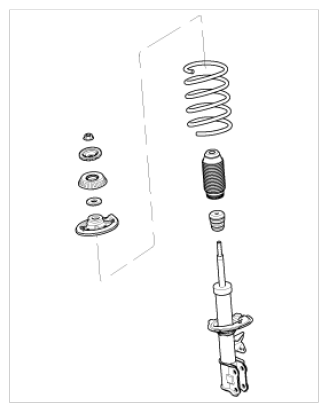

- Disassemble the components of front strut assembly in sequence.
(Refer to FRONT STRUT ASSEMBLY components)
- Reassembly is the reverse of disassembly.
