Components and Components Location: Components

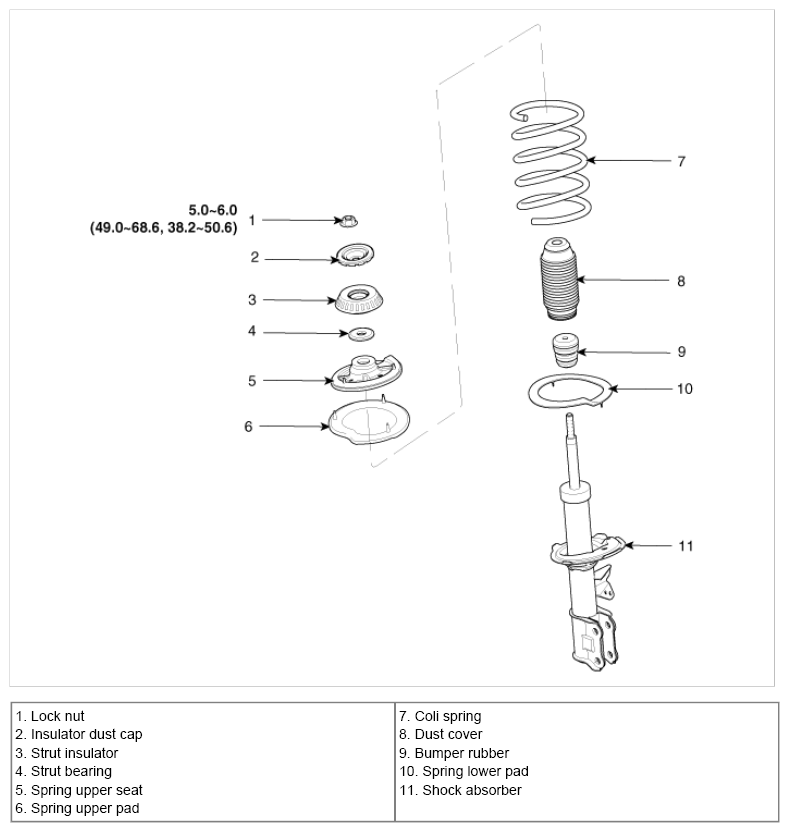

Fig 1: Front Strut Assembly And Related Replacement Components With Torque Specifications
G08805328Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
  • Tighten with specified torque at curb position of vehicle
  • Fix the strut rod end and tighten the nut
