Repair procedures: Replacement

Remove the front wheel & tire.
Tightening torque:

88.3 ~ 107.9N.m (9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)

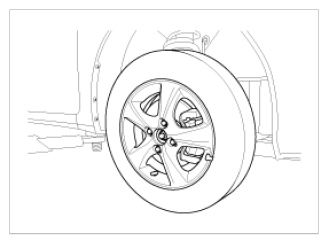

Fig 1: Identifying Front Wheel And Tire
Courtesy of HYUNDAI MOTOR AMERICA

CAUTION: Be careful not to damage to the hub bolts when removing the front wheel & tire.
Disconnect the stabilizer link with the front strut assembly after loosening the nut.
Tightening torque:

98.1 ~ 117.7N.m (10.0 ~ 12.0kgf.m, 72.3 ~ 86.8lb-ft)

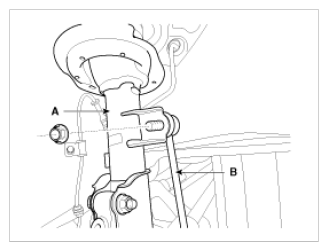

Fig 2: Identifying Stabilizer Link And Front Strut Assembly
Courtesy of HYUNDAI MOTOR AMERICA

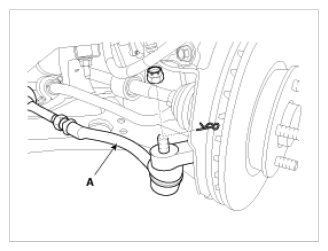

Loosen the nut and then remove the tie-rod end (A) with the front axle.
Tightening torque:

23.5 ~ 33.3N.m (2.4 ~ 3.4kgf.m, 19.4 ~ 24.6lb-ft)

Fig 3: Identifying Tie-Rod End And Nut
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the nut and then remove the lower arm (A).
Tightening torque:

58.8 ~ 70.6N.m (6.0 ~ 7.2kgf.m, 43.4 ~ 52.1lb-ft)

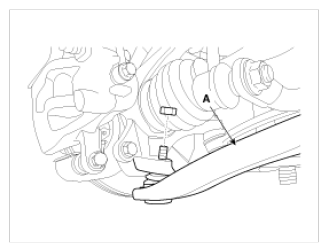

Fig 4: Identifying Lower Arm
Courtesy of HYUNDAI MOTOR AMERICA

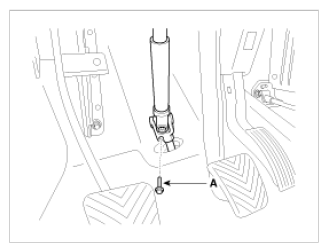

Loosen the bolt (A) and then disconnect the universal joint assembly from the pinion of the steering gear box.
Tightening torque:

32.4 ~ 37.3 N.m (3.3 ~ 3.8 kgf.m, 23.9 ~ 27.5 lb-ft)

Fig 5: Identifying Universal Joint Assembly Mounting Bolt
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Lock the steering wheel in the straight ahead position to prevent the damage of the clock spring inner cable when you handle the steering wheel.
- Must be replaced with new bolts when assembling. (SEAL-LOCK has been processed) SEAL-LOCK Specifications: MS721-39 "TYPE-D" Product: ND industries 1193S
Remove the rubber hanger (A).

Fig 6: Identifying Rubber Hanger
Courtesy of HYUNDAI MOTOR AMERICA

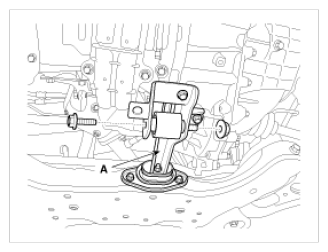

Remove the cross member from the body by loosening the roll rod (A) mounting bolts and nuts.
Tightening torque:

53.9 ~ 63.7N.m (5.5 ~ 6.5kgf.m, 39.8 ~ 47.0lb-ft)

Fig 7: Identifying Cross Member Roll Rod With Mounting Bolts And Nuts
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the bolts & nuts and then remove the front sub frame (A).
Tightening torque:

Sub frame mounting bolt & nut

156.9 ~ 176.5N.m (16.0 ~ 18.0kgf.m, 115.7 ~ 130.2lb-ft)

Sub frame stay mounting bolt

44.1 ~ 53.9N.m (4.5 ~ 5.5kgf.m, 32.5 ~ 39.8lb-ft)

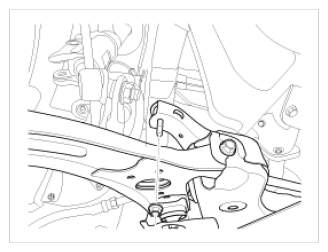

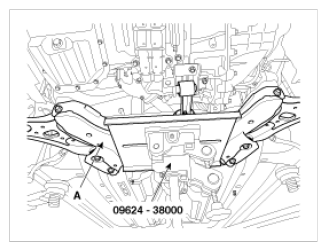

Fig 8: Identifying Front Sub Frame With Mounting Bolts And Nuts (1 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

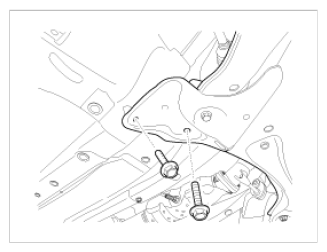

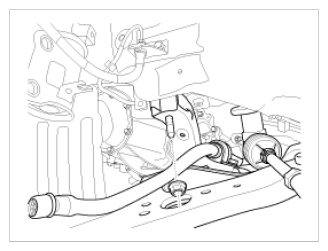

Fig 9: Identifying Front Sub Frame With Mounting Bolts And Nuts (2 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

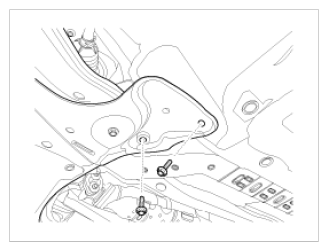

Fig 10: Identifying Front Sub Frame With Mounting Bolts And Nuts (3 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 11: Identifying Front Sub Frame With Mounting Bolts And Nuts (4 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 12: Identifying Front Sub Frame With Mounting Bolts And Nuts (5 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA
Remove the stabilizer (A) from the front sub frame by loosening the mounting bolts & nuts.
Tightening torque:

44.1 ~ 53.9N.m (4.5 ~ 5.5kgf.m, 32.5 ~ 39.8lb-ft)

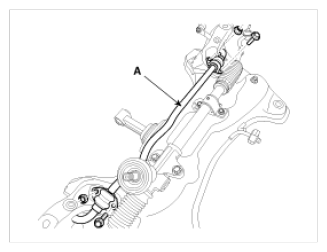

Fig 13: Identifying Front Sub Frame Stabilizer With Mounting Bolts And Nuts
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the stabilizer link (A) with the stabilizer bar by loosening the nut.
Tightening torque:

98.1 ~ 117.7N.m (10.0 ~ 12.0kgf.m, 72.3 ~ 86.8lb-ft)

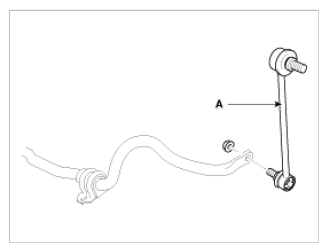

Fig 14: Identifying Stabilizer Link With Stabilizer Bar & Nut
Courtesy of HYUNDAI MOTOR AMERICA
Remove the bushing (A) and the clamp (B) from the stabilizer bar.

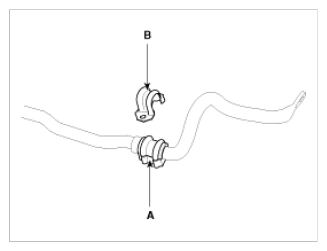

Fig 15: Identifying Stabilizer Bar Bushing And Clamp
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
