Components and Components Location: Components

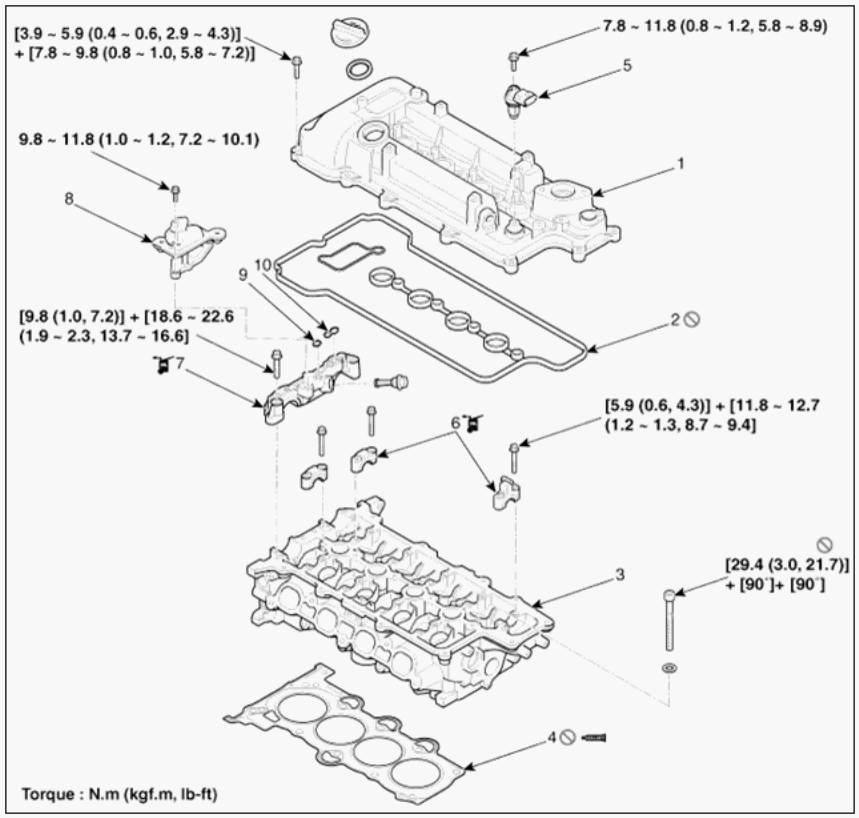

Fig 1: Cylinder Head Replacement Components With Torque Specifications (1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

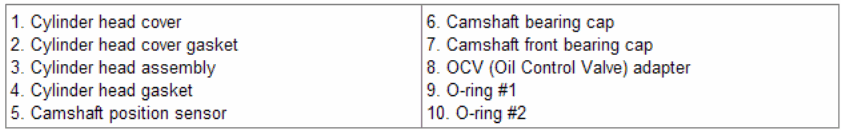

Fig 2: Callouts

Courtesy of HYUNDAI MOTOR AMERICA

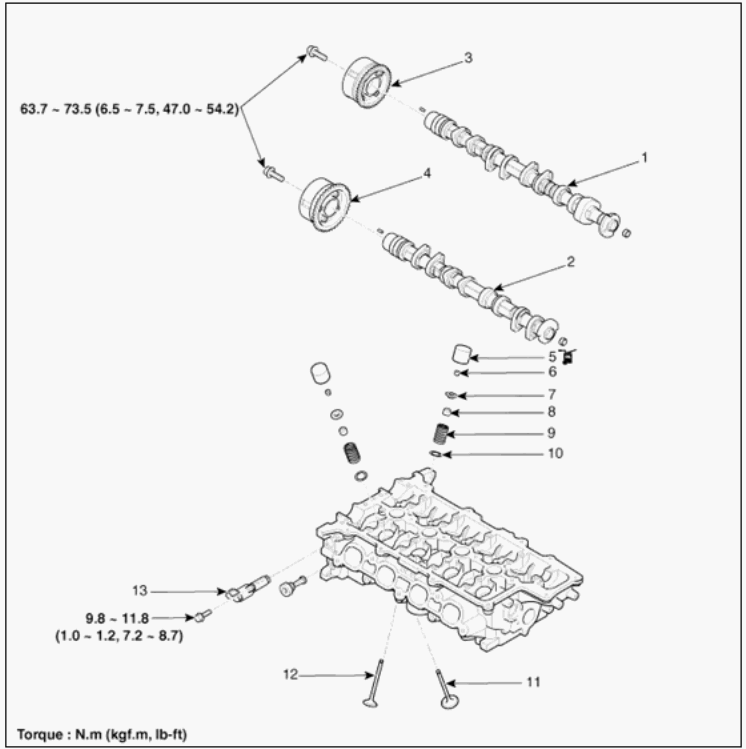

Fig 3: Cylinder Head Assembly Replacement Components With Torque Specifications (2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

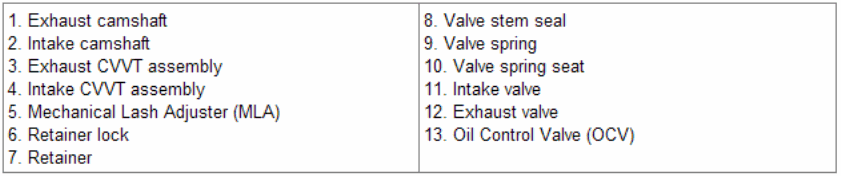

Fig 4: Callouts

Courtesy of HYUNDAI MOTOR AMERICA
