Selection Of Engine Oil

Recommendation of oil classification: API SM, ILSAC GF-4, ACEA A5 (API SL/ILSAC GF-3/ACEA A3 class oil can be used if the recommended oil is not available)

SAE viscosity grade: Refer to the recommended SAE viscosity number

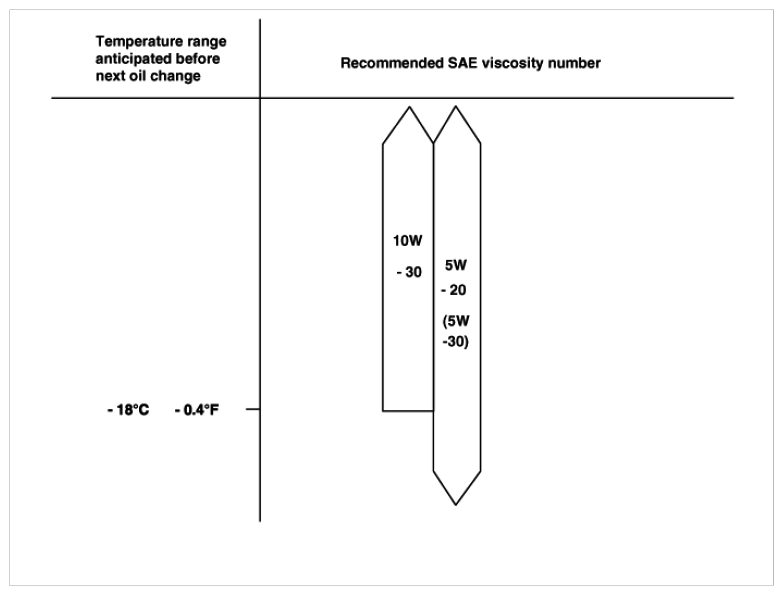

Fig 1: Identifying Recommended SAE Viscosity Number
G08804168Courtesy of HYUNDAI MOTOR AMERICA
NOTE: For best performance and maximum protection of all types of operation, select only those lubricants which:
  1. Satisfy the requirement of the API or ILSAC or ACEA classification.
  2. Have proper SAE grade number for expected ambient temperature range.
  3. Lubricants that do not have both an SAE grade number and API or ILSAC or ACEA service classification on the container should not be used.
