Components and Components Location: Components

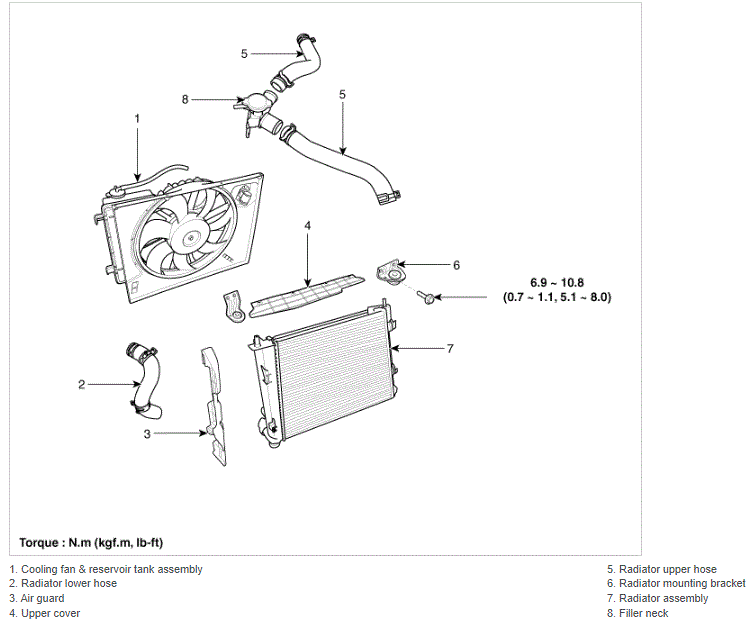

Fig 1: Radiator Replacement Components With Torque Specifications
G08804154Courtesy of HYUNDAI MOTOR AMERICA
1. Cooling Fan & reservoir tank assembly 5. Radiator upper hose
2. Radiator lower hose 6. Radiator mounting bracket
3. Air guard 7. Radiator assembly
4. Upper cover 8. Filler neck
