Trunk lid release actuator

  1. Disconnect the negative battery terminal.
  2. Remove the rear trunk lid trim, and then remove the trunk lid switch from the actuator.

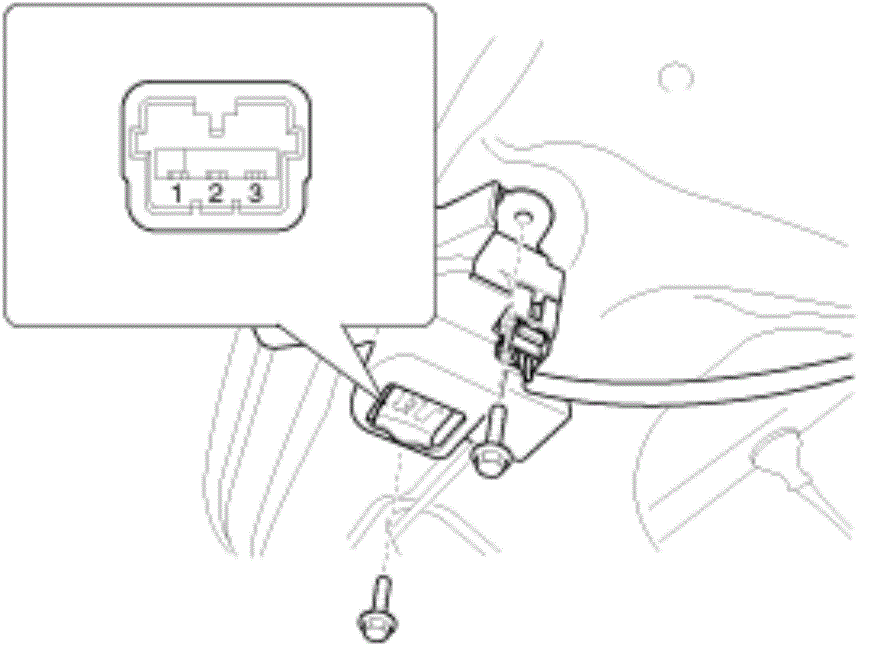

    Fig 1: Identifying Rear Trunk Lid Actuator Connector Terminals
    G08803298Courtesy of HYUNDAI MOTOR AMERICA
  3. Check for continuity between the terminals in each switch position according to the table.
    Fig 2: Rear Trunk Lid Actuator Continuity Chart
    G08803299Courtesy of HYUNDAI MOTOR AMERICA
