Door switch

Remove the door switch and check for continuity between the terminals.

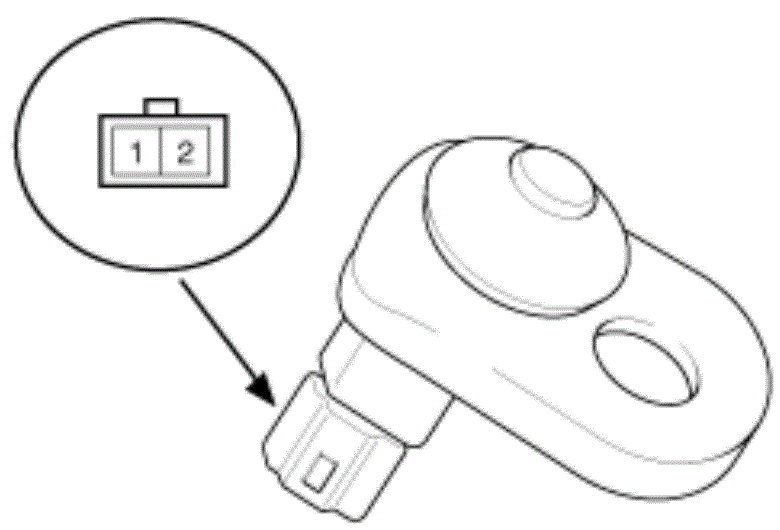

Fig 1: Identifying Door Switch Connector Terminals
G08803300Courtesy of HYUNDAI MOTOR AMERICA

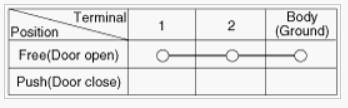

Fig 2: Door Switch Continuity Chart
G00538940Courtesy of HYUNDAI MOTOR AMERICA
